Description

Sensor featuresThe IS 180-2 is available in white, silver and black. The sensor can tolerate up to 1000W. The sensor registers in a circle of 180? and up to a distance of 12 meters the smallest movements. The maximum registration angle is therefore 180?. The infrared sensor also reacts to people's body heat. Disturbing influences such as wind, leaves, rain, snow and the like are excluded. Sensor settingsTo ensure that the light only switches on when the light is actually needed, the lamp can be set from which ambient brightness the sensor lamp should be activated. With an adjustment knob, the switch-on level can be infinitely adjusted from 2 lux (night) to 2000 lux (day). Cover plates are included with all sensors, which can be cut to size. After registering a movement, the light remains on for the set time. The time setting on the IS 180-2 can be set from 10 seconds to 15 minutes. The range can also be continuously reduced to max. 12 meters or 5 meters. Other featuresThe sensor is supplied including corner wall holder. The IP value of the sensor is IP 54. The sensor functions optimally when the sensor is placed at the ideal mounting height, i.e. 2 meters.

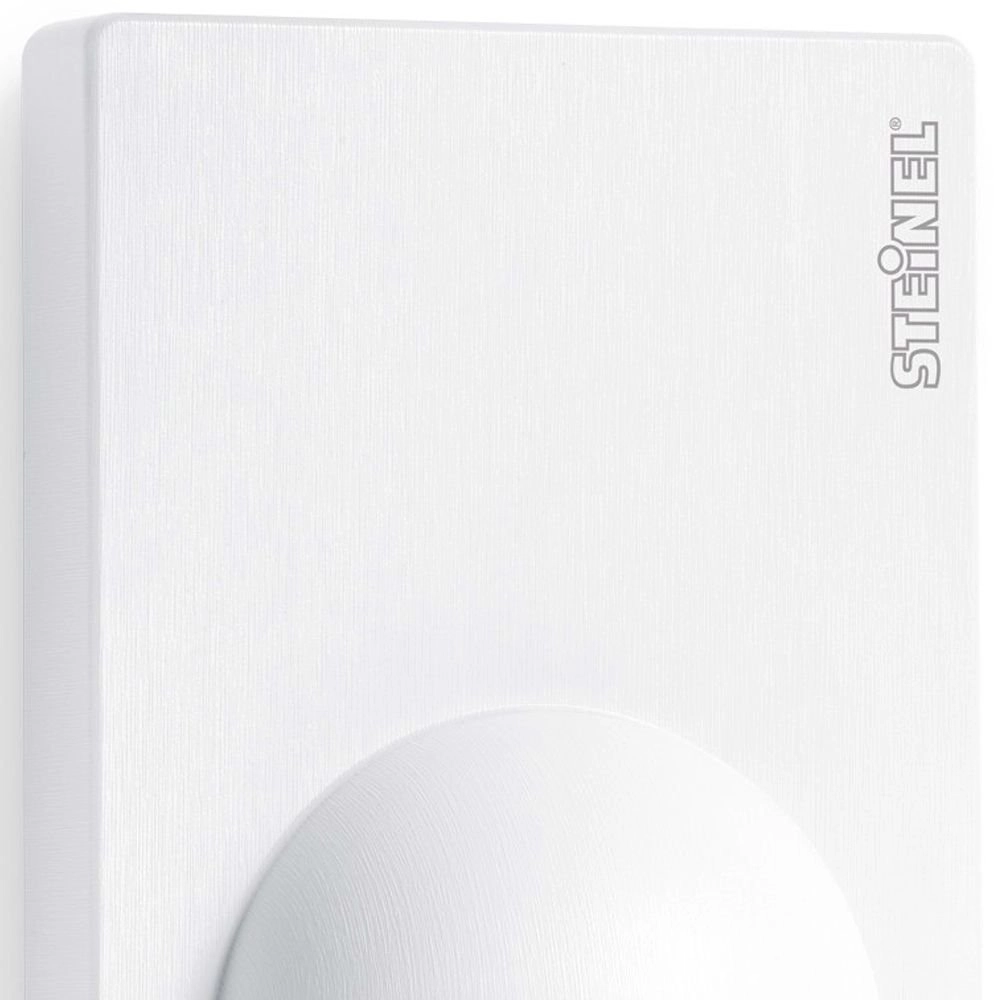

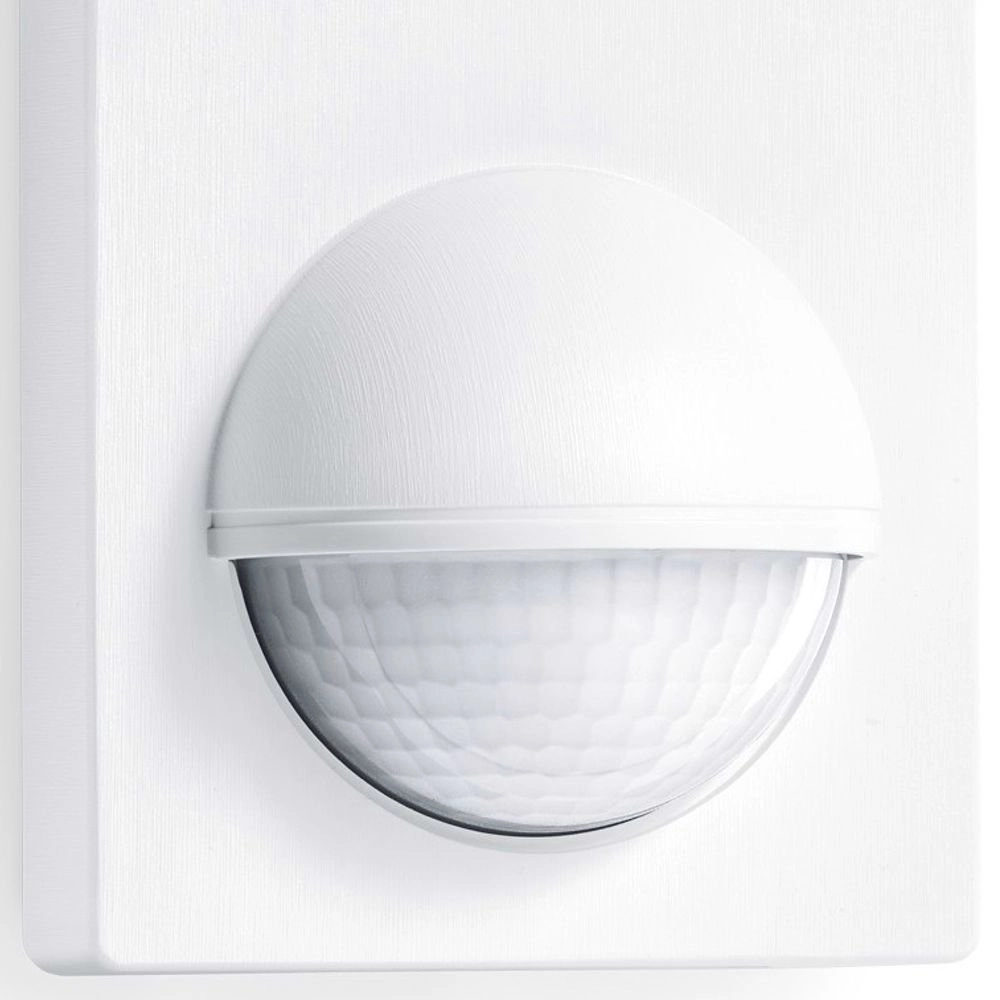

IS180-2 Motion Sensor White

The IS180-2 motion sensor from Steinel is an innovative solution for efficiently lighting spaces. With its sleek white design, this sensor fits perfectly into various environments while providing powerful functionality.

Sensor Features

The IS180-2 is designed to deliver maximum performance. This sensor can handle up to 1000W of power and has a detection angle of 180°. This means it can detect movements in a circle of 180° and up to a distance of 12 meters. Thanks to the infrared sensor, the IS180-2 responds to the body heat of people, ignoring disruptive influences such as wind, leaves, and precipitation.

Sensor Settings

To ensure that the light only turns on when needed, the IS180-2 can be easily configured. The sensor allows you to set the ambient light level from 2 lux (for night use) to 2000 lux (for day use) with a convenient adjustment knob. After detecting movement, the light remains on for an adjustable duration, ranging from 10 seconds to 15 minutes. Additionally, the sensor's range can be continuously adjusted up to a maximum of 12 meters or 5 meters, depending on your specific needs.

Additional Features

The IS180-2 comes with an angled wall mount, making it easy to install at the desired location. With an IP rating of IP54, this sensor is resistant to dust and splashes, contributing to its durability and reliability in various weather conditions. For optimal operation, it is recommended to install the sensor at a height of 2 meters.

Benefits of the IS180-2

• Maximum detection angle of 180°
• Detects movement up to 12 meters
• Adjustable ambient light sensitivity
• Adjustable lighting duration
• High-quality IP54 protection

With the IS180-2 motion sensor, you bring home a reliable and efficient solution that not only saves energy but also ensures a safe and well-lit environment. Whether for a driveway, garden, or other outdoor spaces, this sensor offers the perfect combination of functionality and ease of use.
