Description

The infrared motion detector IS 2180-2 is equipped with a multilens which can be turned by hand. This allows the range and registration areas to be set individually. Setting 1) max. 12 m reach with creep protection. Setting 2) max. 5 m reach with creep under protection. The 180 ° registration angle and the range can also be reduced with the cover plates supplied. The time and start level of the infrared sensor can be individually controlled. A corner wall holder for quick assembly with the aid of two screws on inside and outside corners are included in the delivery. SPECIAL CHARACTERISTICS Ideal for building fronts and plots, on average large company sites and outdoor areas Ideal 2 m mounting height Range max. 12 m or max. 5 m (tangential) Registers an area up to 200 m² Article number 603717 EAN code 4007841603717 Brand STEINEL Net weight (kg) 0.169 Scope 5 or 12 m 180 ° angle of view IP54 protection Twilight setting 2 - 2000 lux Colour black Time setting 10 - 15 sec / min

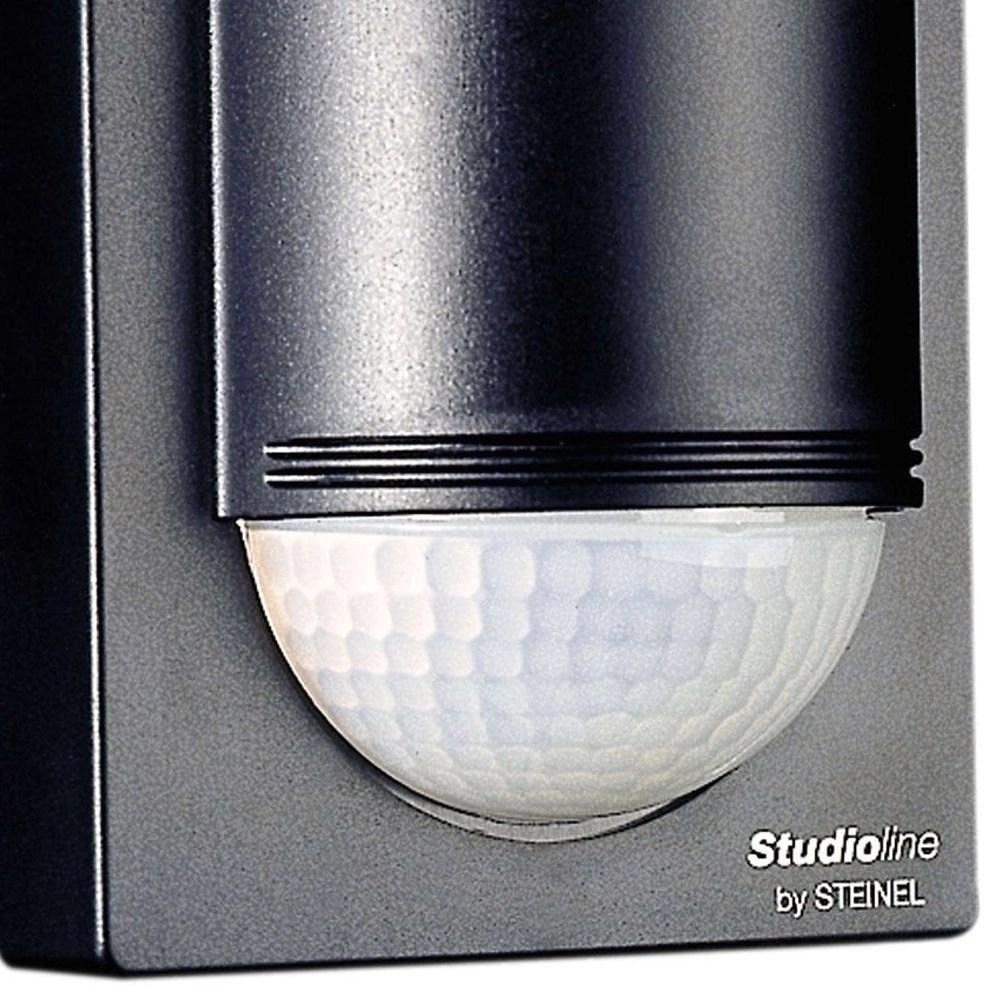

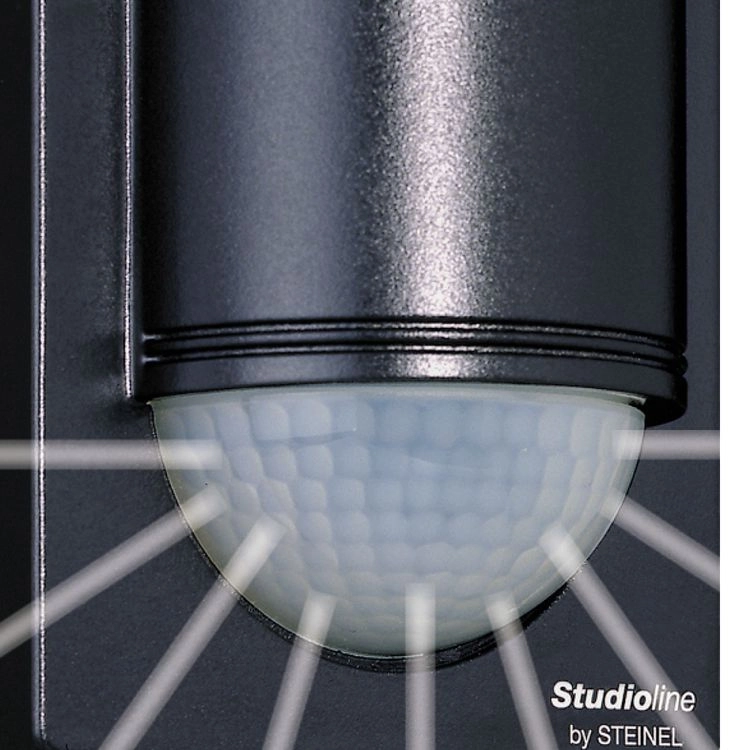

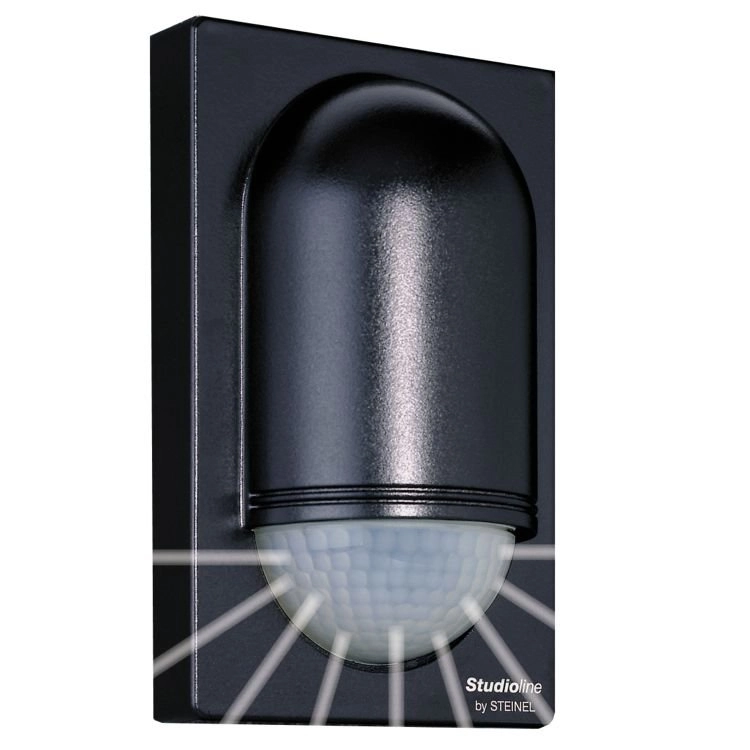

IS2180-2 Motion Sensor Black

The IS2180-2 from Steinel is a high-quality motion sensor that is perfect for both indoor and outdoor applications. With its sleek black design, this sensor seamlessly fits into various environments while providing excellent functionality for automatically turning on lighting.

Sensor Features

The IS2180-2 is equipped with an advanced infrared sensor that responds to the body heat of people. This sensor has a detection angle of 180° and a range of up to 12 meters, allowing it to cover a large area. Disturbing influences such as wind, leaves, rain, and small animals are excluded, ensuring reliable operation.

The sensor can be easily connected to a light source with a maximum power of 1000W. This makes the IS2180-2 versatile in use, whether you opt for a powerful lamp or an energy-efficient solution.

Sensor Settings

One of the most attractive features of the IS2180-2 is the adjustability of the sensor. You can set the ambient light intensity at which the sensor lamp should be activated. With a convenient adjustment knob, the activation level can be continuously set from 2 lux to 2000 lux. This ensures that the lamp only turns on when truly needed, contributing to energy savings.

After detecting motion, the light remains on for a set period. The time setting is flexible and can vary from 5 seconds to 15 minutes, depending on your preferences.

Additional Features

The IS2180-2 is made from UV-resistant plastic, ensuring durability and a long lifespan, even under harsh weather conditions. With an IP rating of IP54, this sensor is resistant to dust and splashes, making it ideal for outdoor use.

For optimal functionality, it is recommended to mount the sensor at a height of 2 meters. The lamp comes with a handy corner wall bracket, making installation easy.

• High-quality infrared sensor with a 180° detection angle
• Range of up to 12 meters
• Adjustable ambient light intensity from 2 lux to 2000 lux
• Adjustable duration from 5 seconds to 15 minutes
• UV-resistant plastic housing
• IP54 protection against dust and water

With the IS2180-2, you choose a reliable and efficient solution for all your lighting needs. This sensor combines functionality with style, making it a valuable addition to any home or business.
