Description

This infrared wall sensor IS 240 DUO with a 240 ° registration angle is the optimal solution for monitoring large house fronts and outside corners. Because this IS 240 DUO is equipped with two very sensitive infrared detectors placed in a special angle with respect to each other and is therefore able to completely monitor surfaces up to 230 m². When the sensor is mounted on the outside corners, it can cover a particularly large area with its large registration angle, making the investment in a second sensor superfluous. The registration area can be individually reduced with the supplied cover plates. The individual setting of time and start level is carried out with an easily accessible rotary knob. Thanks to the large, clearly arranged connection chamber, the IS 240-DUO infrared motion detector is easily and quickly mounted on the wall or corner - the appropriate corner wall bracket for this is included. For the cables, both the installation and the installation can be chosen. Light ON / OFF - automatically. The highly innovative sensors react to movements and light conditions and automatically switch the light on and off after a configurable time. Living comfortably and at the same time saving energy. More quality of life, safety and energy savings thanks to intelligent sensor technology from STEINEL. Technical data Infrared motion detector IS 240 DUO black European Article Number: (EAN) 4007841602710 Execution: Motion detector Dimensions: (H x W x D) 90 x 60 x 100 mm Power supply: 230 - 240 V, 50 Hz Sensor type Passive infrared Application: inside and outside Mounting: Wall Angle max. power (ohmic load, eg lamp for universal use) 1000 W max. power (uncompensated, inductive, cos? = 0.5, eg fluorescent lamps) 500 VA max. power (electronic ballasts, capacitive, eg energy-saving lamps) max. 6 pcs., C 132 ?F Angle of registration: 240 ° with 180 ° opening angle reduction of the registration angle per segment possible Yes Swivel range: Fine adjustment ± 80 ° of the sensor housing Range max. 12 m (temperature stabilized) Switch-on brightness: 2-2000 lx Time setting: 10 sec. - 15 min. Protection: (IP) IP54 Protection class II Variant: black Accessories incl. Corner wall holder

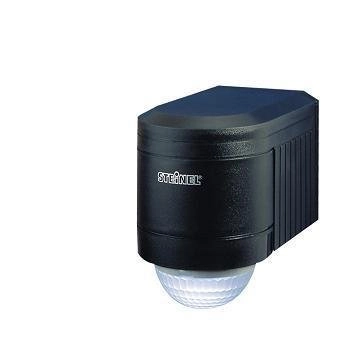

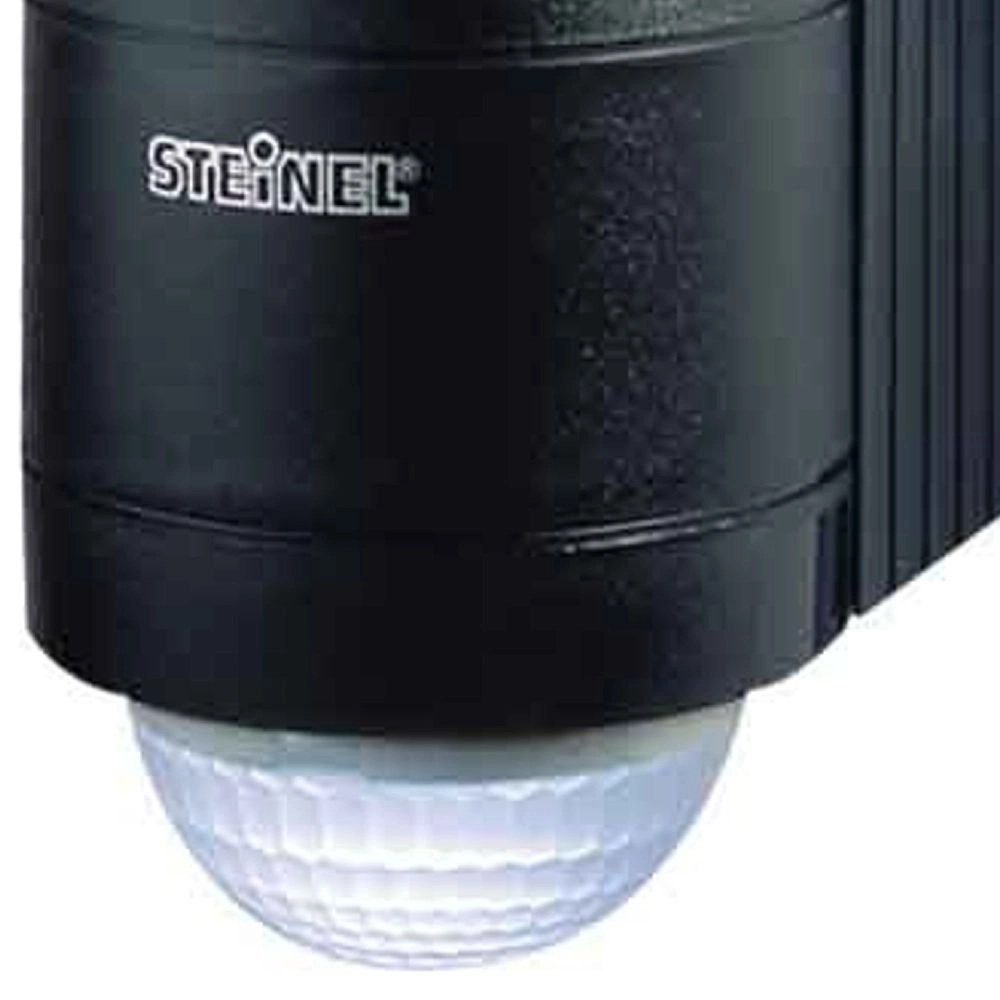

IS240Duo Motion Detector

The IS240Duo is an advanced motion detector from the brand Steinel, designed to provide optimal safety and ease of use. With a sleek finish in both white and black, this sensor fits perfectly into any environment. The IS240Duo is not only aesthetically pleasing but also highly functional, with a maximum load of 1000W.

Sensor Features

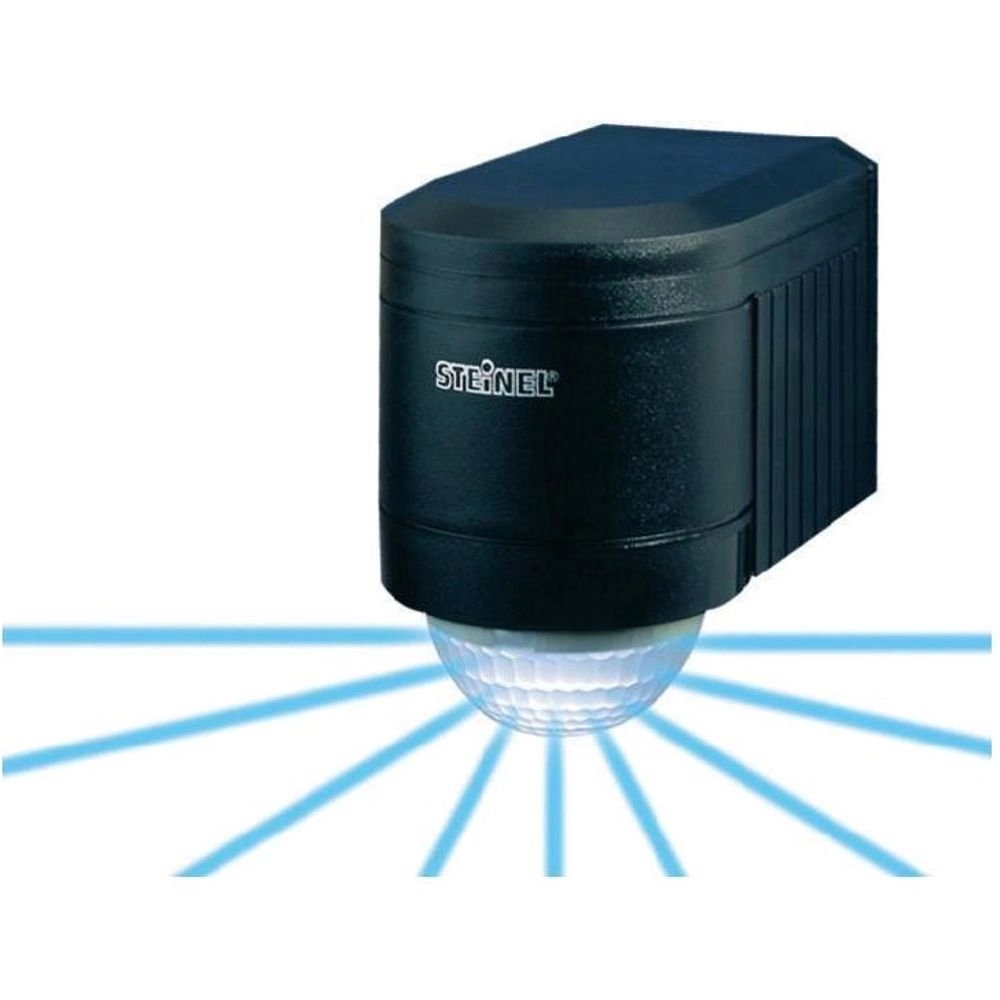

This innovative sensor detects movements in a 240° circle and has a range of up to 12 meters. Thanks to the 160° adjustability of the sensor, it can be easily tailored to your specific needs. The infrared sensor reacts to the body heat of people, excluding disruptive influences such as wind, leaves, rain, and snow. This ensures that the sensor only responds to relevant movements, increasing reliability.

Sensor Settings

With the IS240Duo, you can adjust the light activation to your environment. The sensor can be set to an ambient light level of 2 lux (night) to 2000 lux (day), ensuring that the light only turns on when truly needed. The included adjustment knob makes it easy to set the activation level continuously. After detecting movement, the light remains on for a pre-set duration, ranging from 10 seconds to 15 minutes. Additionally, the sensor's range can be continuously reduced to a maximum of 12 meters, further enhancing flexibility.

Additional Features

The IS240Duo comes with a corner wall mount, making installation a breeze. The sensor has an IP rating of IP54, meaning it is resistant to dust and water, making it ideal for both indoor and outdoor applications. For optimal performance, it is recommended to mount the sensor at a height of 2 meters.

• Maximum load:1000W
• Detection angle:240°
• Range:up to 12 meters
• Adjustable light intensity:2 lux - 2000 lux
• Adjustable duration:10 seconds - 15 minutes
• IP rating:IP54

With the IS240Duo, you are assured of a reliable and efficient motion detector that meets all your needs. Whether you are looking for extra security in your home or business, this sensor offers the perfect solution.
