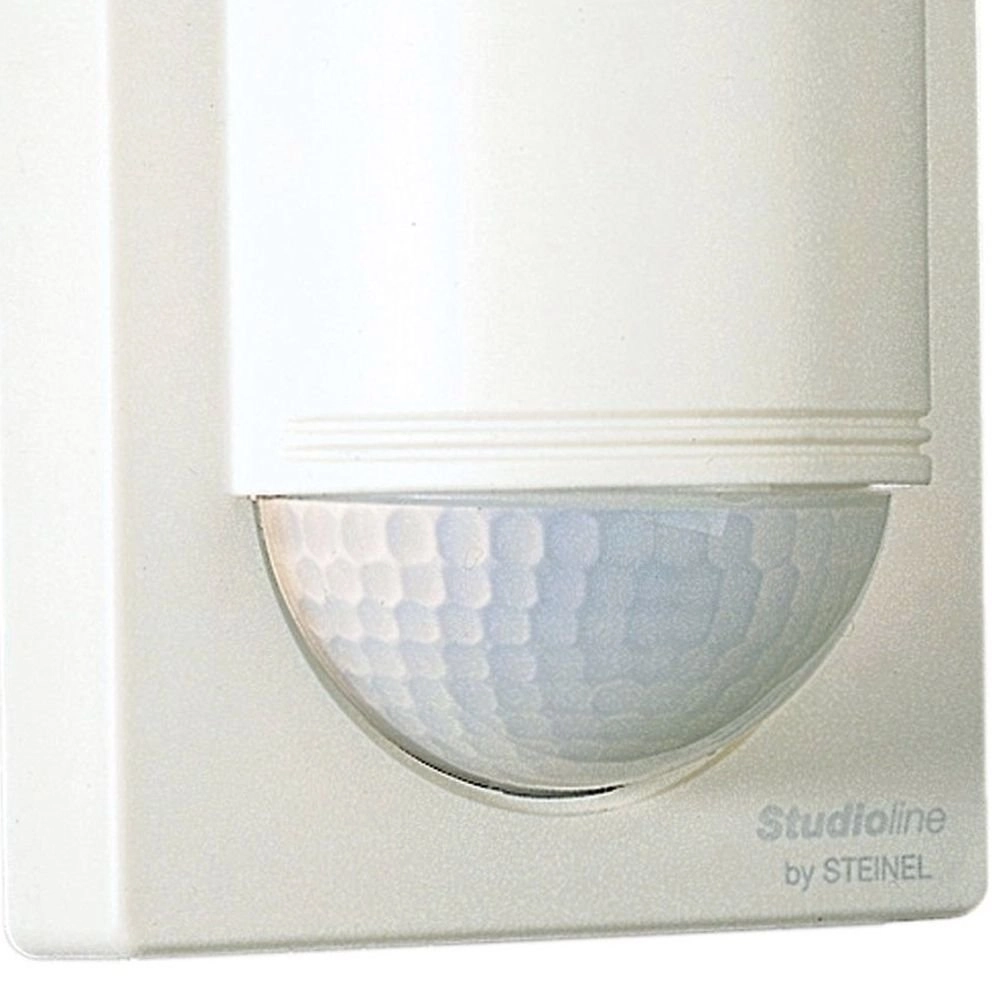

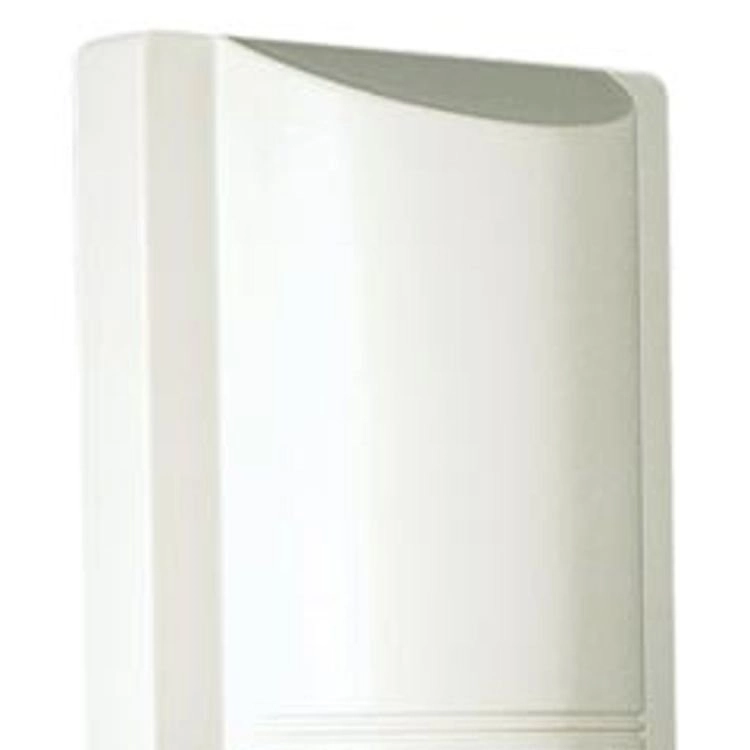

This 180 ° infrared motion detector IS 2180-2 with max. 12 m reach for wall mounting inside and outside can monitor surfaces up to 200 m². It is equipped with a multilens that can be turned by hand. This allows the range and registration areas to be set individually. Setting 1) max. 12 m reach with creep protection. Setting 2) max. 5 m reach with creep under protection. The 180 ° registration angle and the range can also be reduced with the cover plates supplied. The time and start level of the infrared sensor can be individually controlled. A white corner wall holder for quick assembly with the aid of two screws on inside and outside corners are included in the delivery.
Light ON / OFF - automatically.
The highly innovative sensors react to movements and light conditions and automatically switch the light on and off after a configurable time.
Living comfortably and at the same time saving energy.
More quality of life, safety and energy savings thanks to intelligent sensor technology from STEINEL.
Technical data Infrared motion detector: IS 2180-2 white
European Article Number: (EAN) 4007841603816
Execution: Motion detector
Dimensions: (H x W x D) 120 x 78 x 55 mm
Power supply: 230 - 240 V, 50 Hz
Sensor type: Passive infrared
recommended mounting height: 2.00 m
max. power (ohmic load, eg lamp for universal use) 1000 W
max. power (uncompensated, inductive, cos? = 0.5, eg fluorescent lamps) 500 VA
max. power (series compensated) 900 W
max. power (parallel compensated, with C? 45.6 ?F) 500 W
max. power (electronic ballasts, capacitive, eg energy-saving lamps) max. 6 pcs., C? 132 ?F
Angle of registration 180 ° with 90 ° opening angle
reduction of the registration angle per segment possible Yes
Scope Basic setting 1: max. 12 m tangential, basic setting 2: max. 5 m, temperature stabilized. + fine adjustment through cover plates
Sensor Basic setting 1: 10 detection levels, 504 switching zones; basic setting 2: 9 registration levels, 412 switching zones
Switch-on brightness: 2-2000 lx
Time setting: 10 sec. - 15 min.
Protection: (IP) IP54
Protection class II
Temperature range -20- + 50 ° C
Accessories incl. Corner wall holder for exterior and interior corners
