Description

Sensor featuresThe IS 140-2 is available in white and black. The sensor can tolerate up to 1000W. The sensor registers in a circle of 180? and up to a distance of 14 meters the smallest movements. The maximum registration angle is therefore 180?. The infrared sensor also reacts to people's body heat. Disturbing influences such as wind, leaves, rain, snow and the like are excluded. By means of a rotation sensor, the IS 140-2 180? turning horizontally and 90 ? vertical. Sensor settingsTo ensure that the light only switches on when the light is actually needed, the lamp can be set from which ambient brightness the sensor lamp should be activated. With an adjustment knob, the switch-on level can be infinitely adjusted from 2 lux (night) to 2000 lux (day). Cover plates are included with all sensors, which can be cut to size. After registering a movement, the light remains on for the set time. The time setting on the IS 140-2 can be set from 8 seconds to 35 minutes. The range can also be continuously reduced to max. 14 meters. Other featuresThe sensor can be supplied including corner wall holder. The IP value of the sensor is IP 54. The sensor functions optimally when the sensor is placed at the ideal mounting height, i.e. 2 meters.

Sensor IS140-2 Motion Sensor

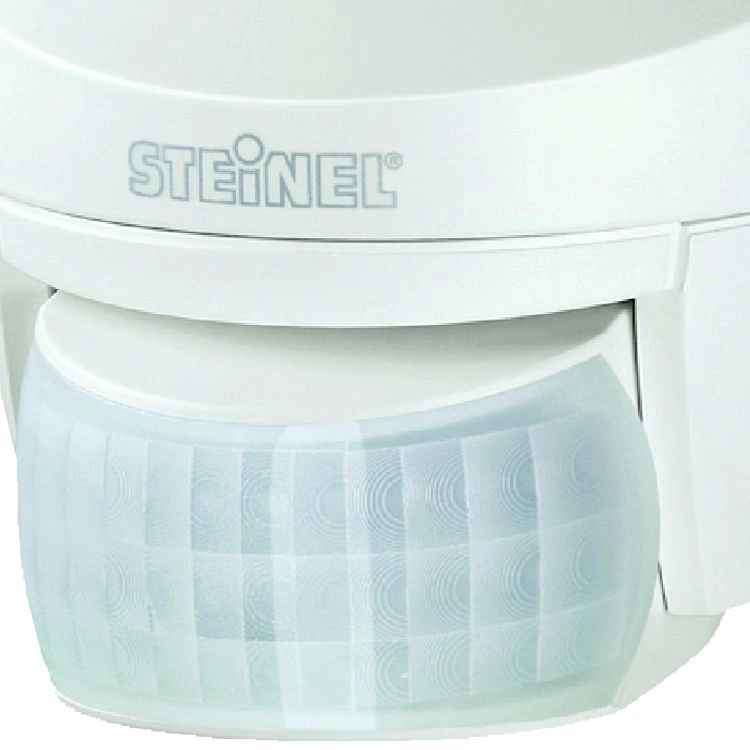

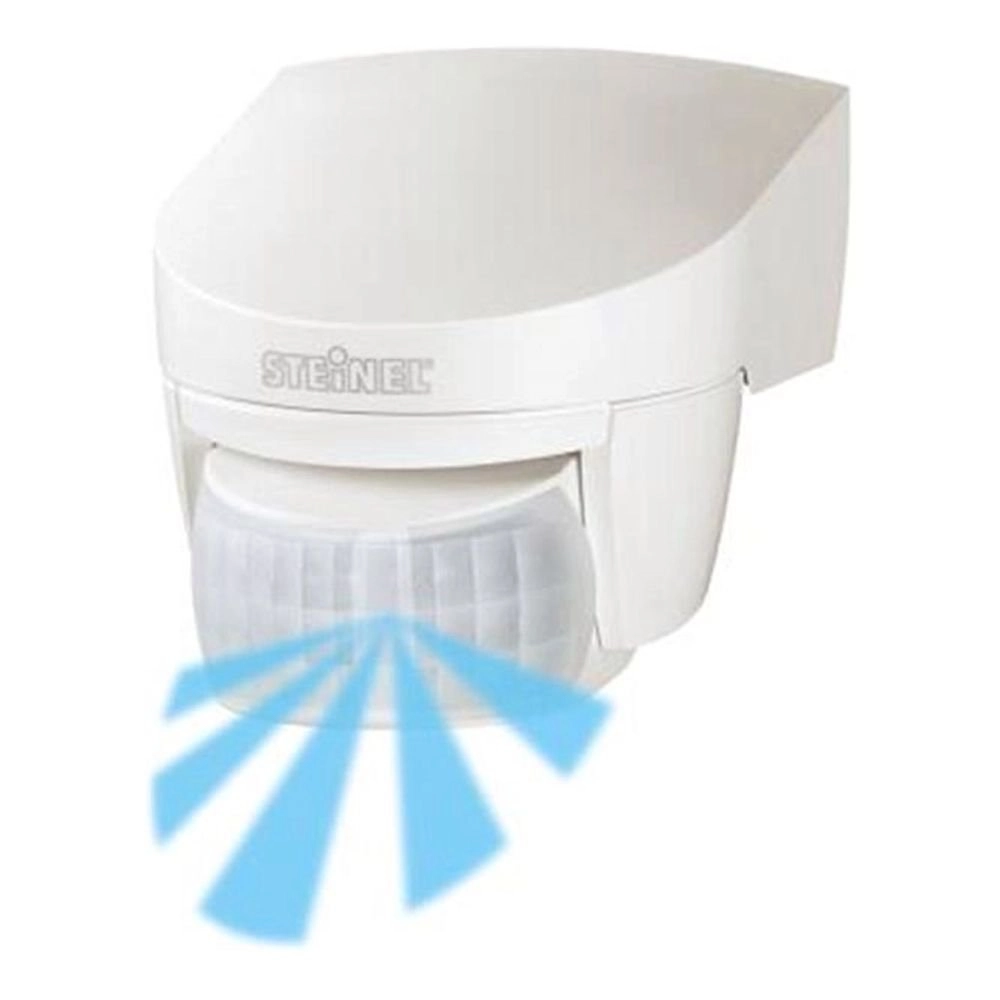

The IS140-2 motion sensor from the brand Steinel is an advanced solution for automatically activating lighting. This sensor is available in both white and black, allowing it to seamlessly fit into various interior and exterior styles. With a power capacity of up to 1000W, the IS140-2 is suitable for a range of applications.

Sensor Features

The IS140-2 boasts an impressive detection capability. It registers movements within a 180° circle and has a range of up to 14 meters. Thanks to its infrared sensor, it can respond to the body heat of people, preventing unwanted activation from disturbances such as wind, leaves, rain, or snow.

The sensor is designed with user-friendliness in mind. With the rotating sensor, the IS140-2 can turn 180° horizontally and 90° vertically, allowing you to easily adjust the detection direction to your preferences.

Sensor Settings

To ensure that the light only turns on when needed, the IS140-2 offers adjustable settings for ambient light intensity. With a convenient dial, the activation level can be set continuously from 2 lux (for nighttime) to 2000 lux (for daytime). This makes the sensor highly flexible and adaptable to various situations.

After detecting movement, the light remains on for a set duration. The time setting can be adjusted from 8 seconds to 35 minutes, ensuring an optimal user experience. Additionally, the sensor's range can be continuously reduced to a maximum of 14 meters, allowing you to tailor the sensitivity to your specific needs.

Additional Features

The IS140-2 can also be supplied with an angle wall mount, making installation easier. With an IP rating of IP54, the sensor is resistant to dust and splashes, making it suitable for both indoor and outdoor applications. For best performance, it is recommended to mount the sensor at a height of 2 meters.

With the IS140-2 motion sensor from Steinel, you bring home a reliable and versatile solution that automatically controls your lighting, ensuring you always have light when you need it.
