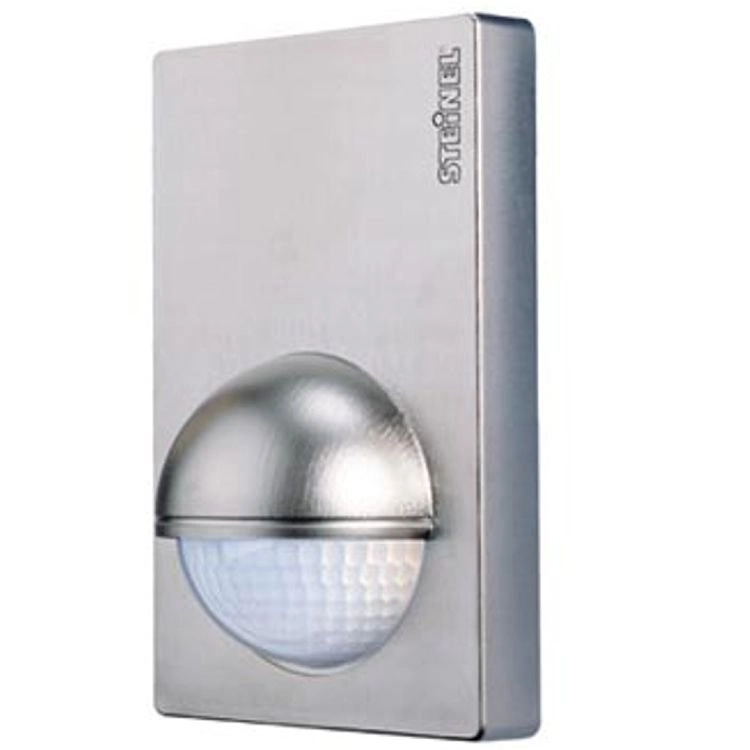

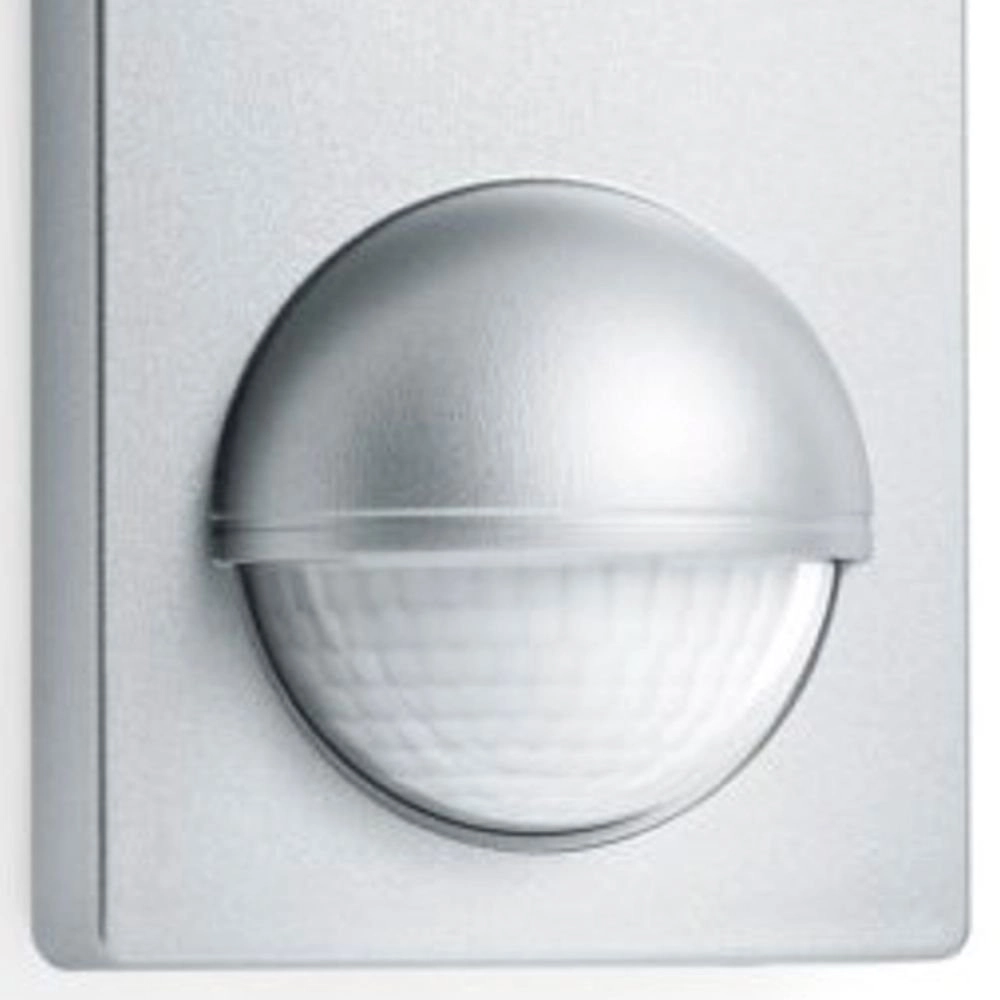

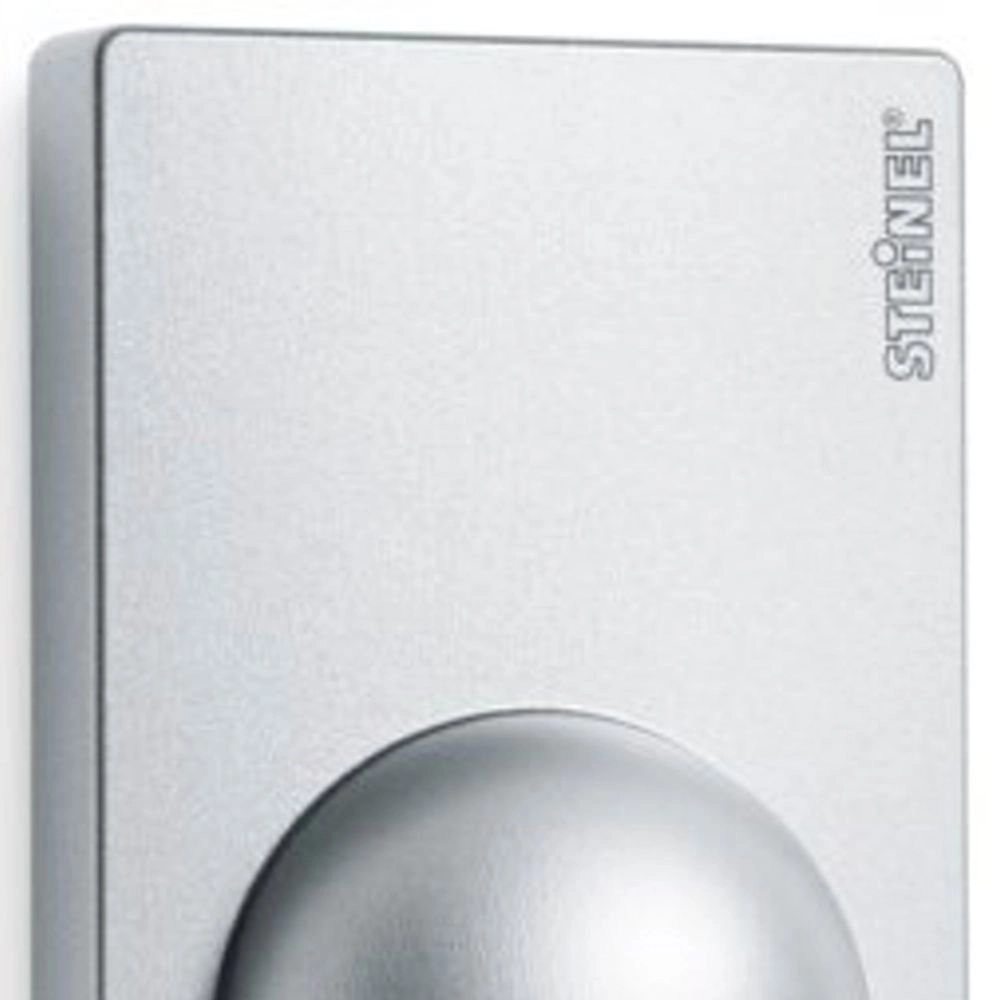

This elegant infrared motion detector IS 180-2 combines the latest sensor technology with a modern design language into a harmonious unit. It has two very sensitive infrared detectors positioned at a special angle to each other, making it possible to monitor even from large surfaces up to 200 m² - both indoors and outdoors, large house fronts, driveways, gardens, courtyards, as well as corridors and cellars. The range can be adjusted to max. 12 m or max. 5 m by turning the multilens. In addition, the registration area can be reduced with the supplied cover plates and adapted to the local conditions. The time and start level are infinitely adjusted with rotary controls. The large, clearly arranged connection chamber guarantees easy connection and installation. For the cables, both the installation and the installation can be chosen. A corner wall holder for a pleasant corner mounting is included.

Light ON / OFF - automatically.
The highly innovative sensors react to movements and light conditions and automatically switch the light on and off after a configurable time.

Living comfortably and at the same time saving energy.
More quality of life, safety and energy savings thanks to intelligent sensor technology from STEINEL.

Technical data Infrared motion detector IS 180-2 silver
European Article Number: (EAN) 4007841603618
Execution: Motion detector
Dimensions: (H x W x D) 120 x 76 x 56 mm
Power supply: 230 - 240 V, 50 Hz
Sensor type Passive infrared
Application inside and outside
Mounting Wall
Angle
max. power (ohmic load, eg lamp for universal use) 1000 W
max. power (uncompensated, inductive, cos? = 0.5, eg fluorescent lamps) 500 VA
max. capacity (electronic ballasts, capacitive, eg energy saving lamps) max. 6 pcs., C 132 ?F

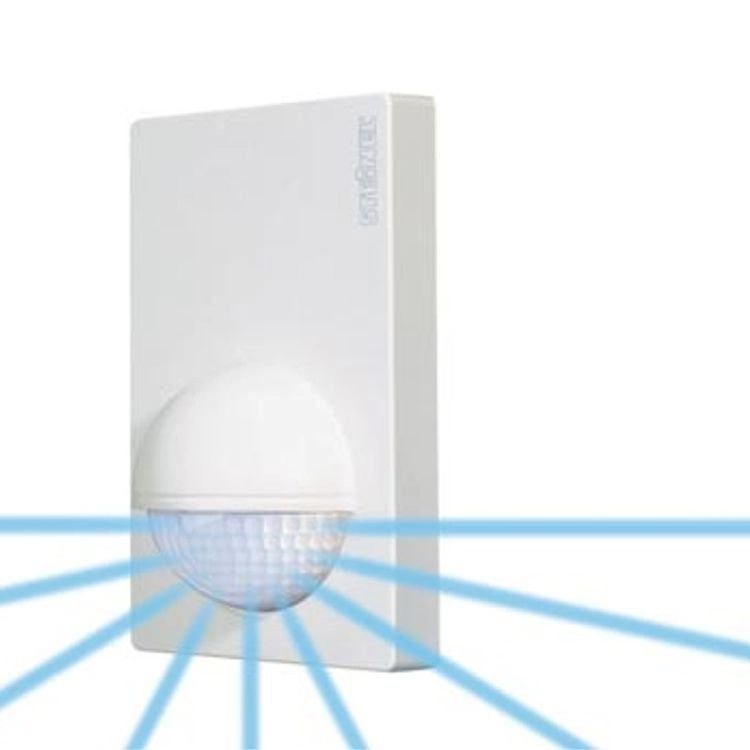

Angle of registration: 180 ° with 90 ° opening angle
reduction of the registration angle per segment possible Yes
Scope: 2 basic settings: max. 12 m or max. 5 m
Switch-on strength 2-2000 lx
Time setting 10 sec. - 15 min.
IP54 protection (IP)
Protection class II
Variant: silver
Accessories incl. Corner wall holder.
