Description

The sensIQ S has an appearance that makes architects happy. It was specially developed for wall mounting. Since he is more compact than his big brother sensIQ, the sensIQ S works optimally against the façade and harmonises perfectly with modern purist architecture. Thanks to protection IP54 and safety class II, it is well protected against wind and weather. The inner values ??are also spectacular, because they are equipped with the same high intelligent designs and setting options as the large sensIQ: the registration angle is 300 °. The registration angles of the four pyro sensors can be Rotary knobs are simply adjusted in three directions from 2 to 20 meters (tangential, temperature stabilized)? instead of with cover plates, as is common with most other motion detectors. The corner wall holder and the remote control are included so that you can easily carry out your individual settings. Article number 034979 EAN code 4007841034979 Brand STEINEL Net weight (kg) 0.21 Dimensions width 74 mm Dimension depth 128 mm Dimensions height 114 mm Range In 3 directions 2 - 20 m Registration angle 300 ° IP54 protection Twilight setting 2 - 2000 lux Colour black Voltage 100-240 / 50-60 V / Hz Time setting 5 - 15 sec / min

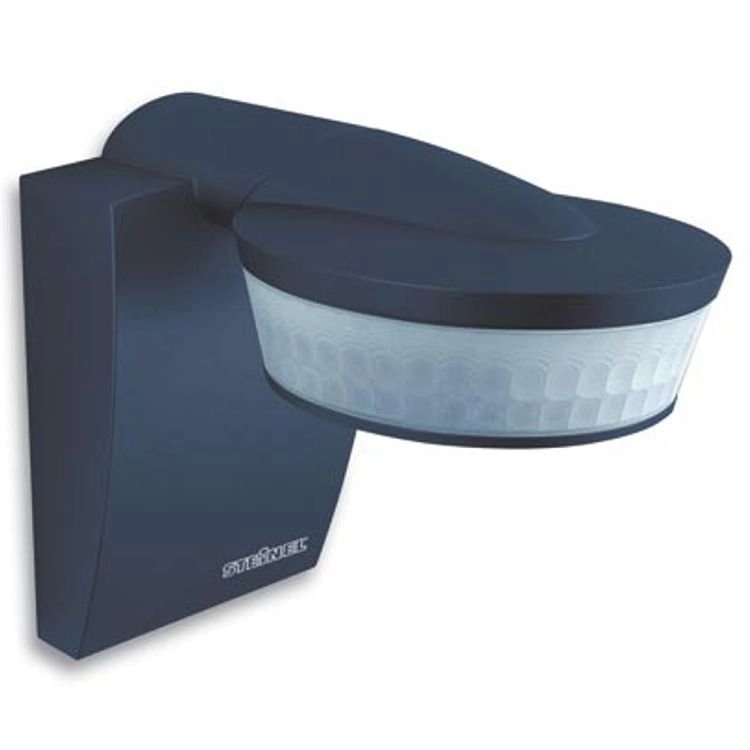

SensIQ S EVO Motion Detector

The SensIQ S EVO from Steinel is the perfect solution for those seeking a reliable and advanced motion detector. Thanks to innovative technology and smart features, this sensor offers optimal security and ease of use.

Sensor Features

The SensIQ S EVO is available in a stylish black finish and can be connected to a light source of up to 2500W. The built-in infrared sensor detects movement in a circle of 3x 100°, excluding disruptive influences such as wind, leaves, and small animals. This ensures comprehensive detection in every direction.

With a detection angle of 300° and an opening angle of 180°, the detection area can reach up to 7 meters, which can be accurately set in three directions. This makes the SensIQ S EVO extremely versatile and suitable for various applications.

Sensor Settings

To ensure that the light only turns on when needed, the lamp can be set to the desired ambient light level. With a handy adjustment knob, the activation level can be continuously adjusted from 2 lux to 2000 lux. Once movement is detected, the light remains on for the set duration. The time setting on the SensIQ S EVO is variable from 5 seconds to 15 minutes.

The range is easily adjustable with rotary knobs in three directions, with a maximum range of 2-20m tangentially. This provides extra flexibility and customization to meet the specific needs of the user.

Additional Features

The SensIQ S EVO is made of UV-resistant plastic and has an IP rating of IP54, meaning it is resistant to dust and splashes. For optimal performance, it is recommended to mount the sensor at a height of 2-5 meters. Ceiling mounting is also an option.

The delivery of this lamp includes a corner wall bracket and remote control RC9, making installation and operation even easier. Additionally, the newly available eNet variant is ideal for integration into existing wireless eNet networks, further expanding the possibilities.

Benefits of the SensIQ S EVO

• Advanced infrared sensor with high accuracy
• Adjustable ambient light level for energy efficiency
• Flexible mounting options and easy installation
• Robust construction with IP54 protection
• Includes remote control for user convenience

With the SensIQ S EVO, you are assured of a reliable and efficient solution for all your motion detection needs. This lamp combines functionality with style and is a valuable addition to your security and lighting systems.
