Description

The quadrature of the circle. Infence presence detector Presence Control PRO IR QUATTRO COM1 for indoor use, ideal for small offices, utility rooms, washrooms and WCs, mounting height up to 8 m, for switching light, 1760 switching zones for excellent recording quality, square registration area with 16 m² presence area, mechanically adjustable . The infrared presence detector Presence Control PRO IR QUATTRO COM1 with its unique angular registration area and COM1 interface. For switching light on and off depending on presence and ambient light intensity. The sensor with 1760 switching zones guarantees excellent recording quality: 4 x 4 m presence registration, 5 x 5 m radial registration and 7 x 7 m tangential registration. The rectangular registration area and the possibility to adjust the range setting infinitely, mechanically, enable very accurate planning. The adaptation to the respective operating situations is carried out with additional functions via potentiometers and remote control (IQ mode for the automatic adaptation of the delay time to the use of space, impulse mode for the control of a stairwell controller, etc.) and via DIP switches ((semi) automatic etc.). The registration area can be extended by master / master or master / slave links. SPECIAL CHARACTERISTICS Ideal for small offices, utility rooms, laundry rooms and toilets Max. 8 m mounting height No less than 1760 switching zones Article number 000349 EAN code: 4007841000349 Brand: STEINEL Net weight (kg): 0.171 Scope: 4 x 4 m Angle of registration: 360 ° Protection: IP20 Twilight setting: 10 - 1000 lux Version: with 1 output

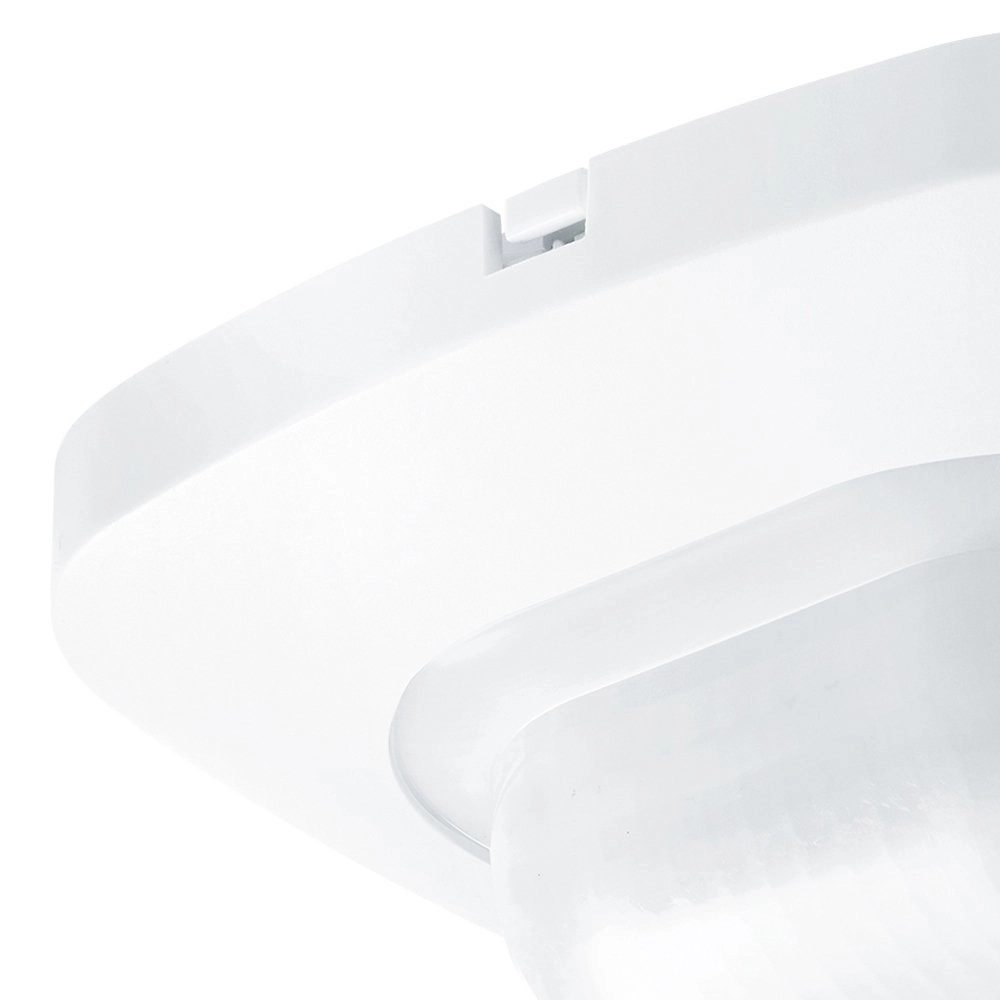

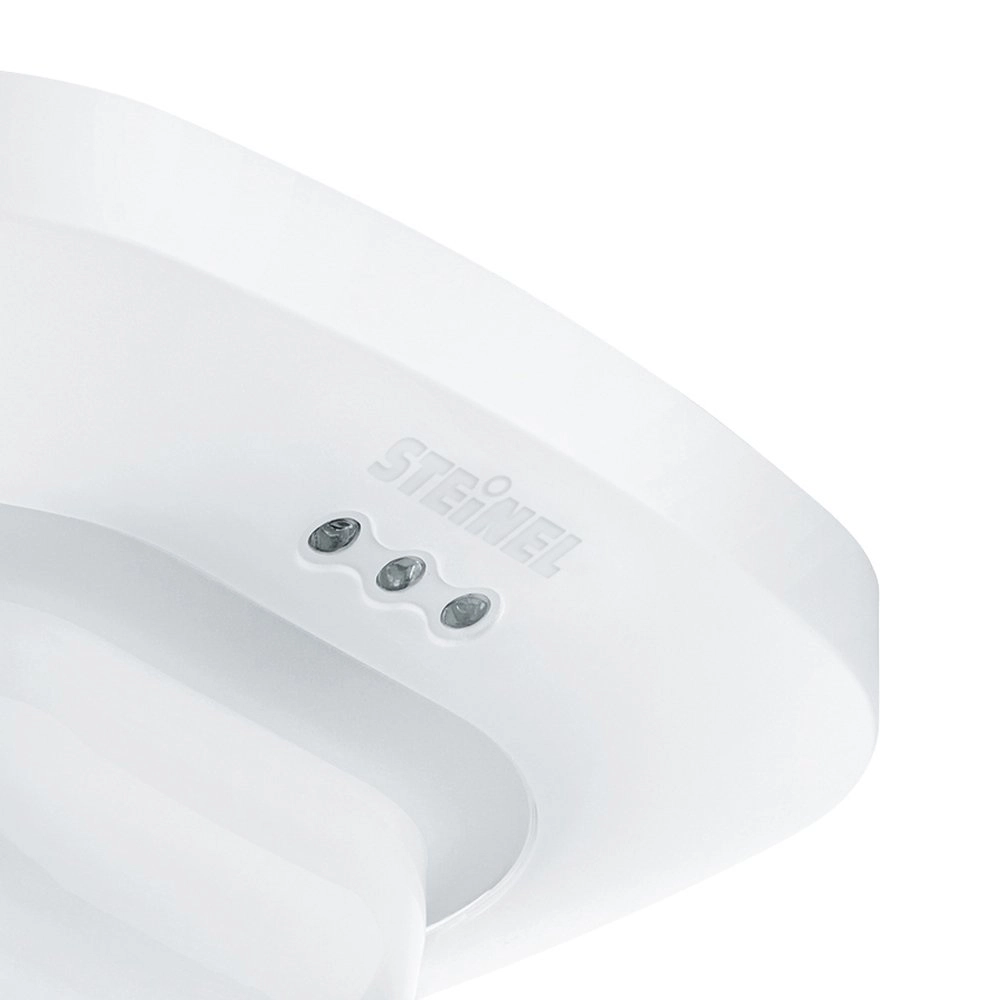

IR Quattro Presence Motion Detector for Indoor Use

The IR Quattro is an innovative presence motion detector from the renowned brand Steinel. This advanced sensor is designed to efficiently illuminate your indoor spaces and provides a reliable solution for automating lighting. With its powerful features and user-friendly design, the IR Quattro is ideal for both residential and commercial applications.

Sensor Features

One of the most notable features of the IR Quattro is its ability to connect to a light source of up to 2000 watts. This allows for the control of various types of lighting, from ceiling lamps to powerful spotlights. The built-in infrared sensor detects movement in a square area of 360°, with a range of up to 4m x 4m. This ensures that the sensor can notice any movement in the space, making it an excellent choice for areas that require continuous monitoring.

Optimal Performance

For the best performance, it is important to mount the IR Quattro at the correct height. The ideal mounting height is between 2.5 meters and 2.8 meters. At this height, the sensor functions optimally and can effectively respond to the body heat of people. This ensures that the lighting automatically turns on and off based on the presence of individuals in the room, which is not only convenient but also saves energy.

Benefits of the IR Quattro

• Automatic lighting based on presence
• Maximum connection of 2000W for versatility
• 360° detection with a range of 4m x 4m
• Ideal mounting height for optimal performance
• Energy efficiency through automatic switching

With the IR Quattro, you not only bring home a functional motion detector but also a product that contributes to a sustainable and energy-efficient lifestyle. The sensor is perfect for use in hallways, stairwells, and other areas where lighting is necessary but not always needed. Choose convenience and efficiency with the IR Quattro, and experience the difference in your daily lighting.
