Vtac - Led dimmer 0 tot 150W ecodim phase cut
35.99 (+ accessoires)
In stock: shipped today
Advantages:
Description
This LED wall dimmer (0-150W / VA) is suitable for dimming the most common LED light sources. With the internal (pressure) changeover switch, this dimmer can operate a lamp in combination with an ordinary changeover switch, so it is also the so-called hotel switch. - 0-150W LED (max. 8 LED lamps) - Phase cut (RC) - Suitable for most brands of covering material - Optimal dimmability & light stability - MIN adjustment - Protection against interference signals - Silent dimming - Soft-start system - Small installation depth - Suitable for two-way switching & cross switching - Supplied incl. Accessory for Busch-Jaeger and JUNG
LED Dimmer 0–150W EcoDim Trailing Edge
ECO-DIM.04 – Adjustable MIN – Automatic MAX detection
EcoDim LED Dimmer – Trailing Edge (RC) 0–150W
The most commonly used dimmer for LED lighting. Designed for optimal dimming performance and light stability, featuring an adjustable MIN level and automatic MAX detection.
Manual: download
Key features
- 0–150W LED
- Trailing edge (RC)
- Compatible with most cover frame brands
- Optimal dimming performance & light stability
- MIN adjustment & automatic MAX detection
- Protection against overload & interference signals
- Silent dimming
- Soft-start system
- Shallow installation depth
- Suitable for two-way & intermediate switching
- Phase loop-through possible (dual L terminal)
- Supplied incl. adapter for Busch-Jaeger and JUNG
General information
- Article number: ECO-DIM.04
- LED dimmer type: Trailing Edge / Phase cut / R,C
- Load: 0–150 Watt LED
- Suitable for 230V halogen: max. 300W
- Operation: Push/turn
- Packaging: Individually packed

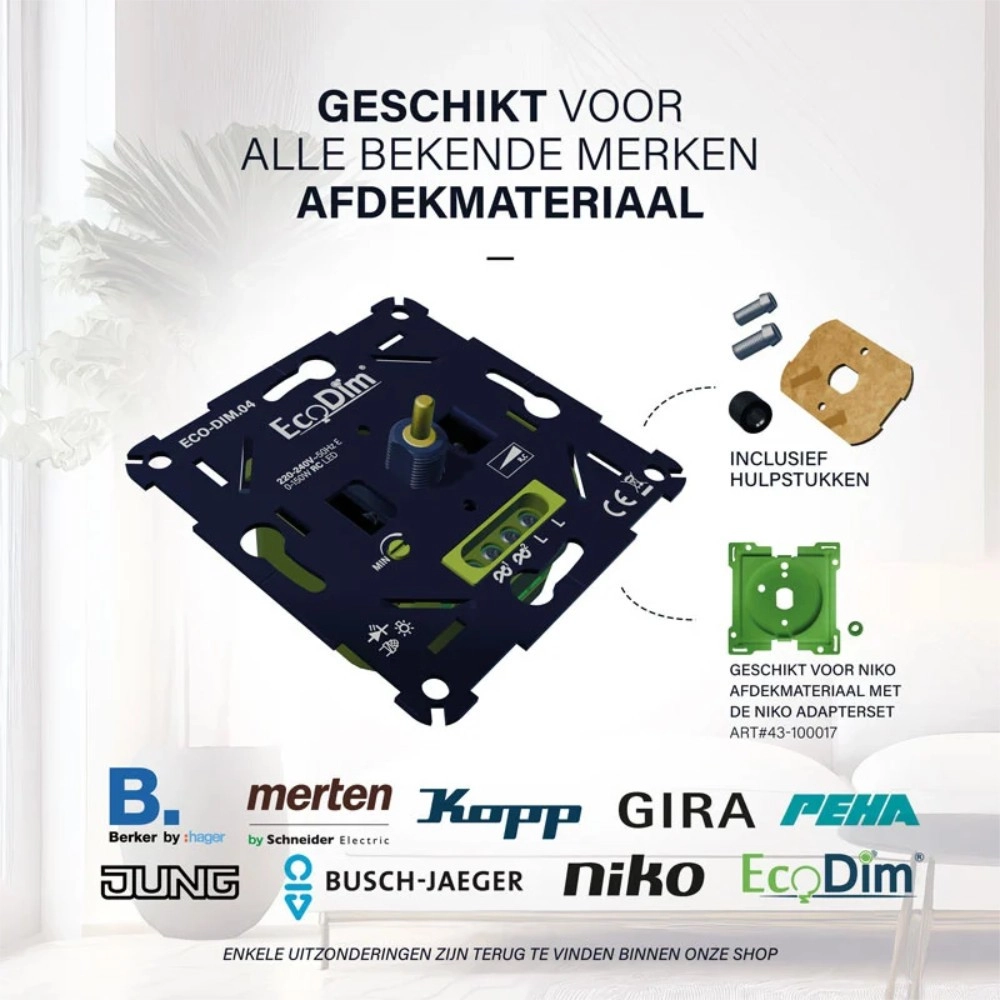

Compatible cover frame brands
- Kopp
- Berker by Hager
- Busch-Jaeger
- Gira
- JUNG
- Merten by Schneider
- Niko
- PEHA
Compatible lamps
- 230V LED lamps* (max. 150W)
- Incandescent lamps (max. 300W)
- 230V halogen lamps (max. 300W)
- Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 300W)
* Provided the lamps are compatible with a trailing-edge LED dimmer.
Specifications
- Product number 85292
- Manufacturer product number 4355410
- Material Plastics
- Built-in depth 2.38
- Color Blue

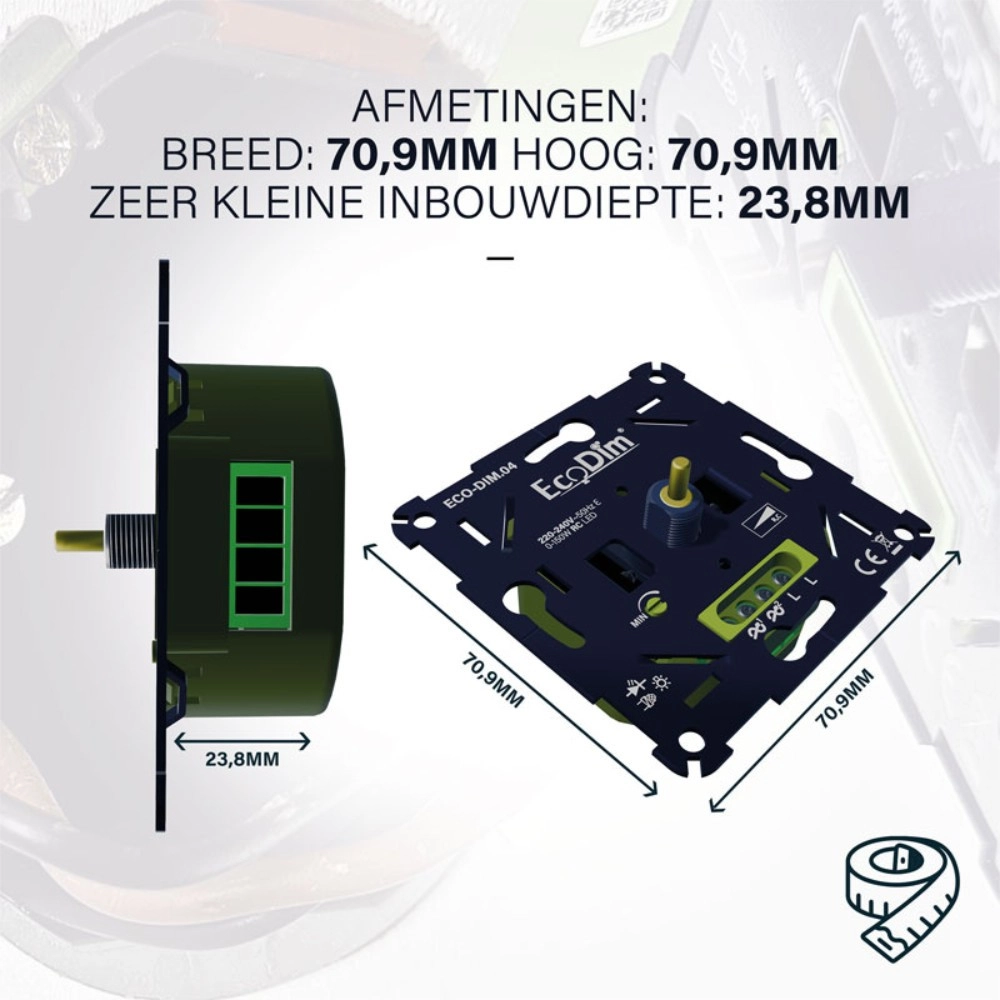

- Dimensions (W) x (H) : 7.09 x 7.09 cm
This LED wall dimmer (0-150W / VA) is suitable for dimming the most common LED light sources. With the internal (pressure) changeover switch, this dimmer can operate a lamp in combination with an ordinary changeover switch, so it is also the so-called hotel switch. - 0-150W LED (max. 8 LED lamps) - Phase cut (RC) - Suitable for most brands of covering material - Optimal dimmability & light stability - MIN adjustment - Protection against interference signals - Silent dimming - Soft-start system - Small installation depth - Suitable for two-way switching & cross switching - Supplied incl. Accessory for Busch-Jaeger and JUNG
LED Dimmer 0–150W EcoDim Trailing Edge
ECO-DIM.04 – Adjustable MIN – Automatic MAX detection
EcoDim LED Dimmer – Trailing Edge (RC) 0–150W
The most commonly used dimmer for LED lighting. Designed for optimal dimming performance and light stability, featuring an adjustable MIN level and automatic MAX detection.
Manual: download
Key features
- 0–150W LED
- Trailing edge (RC)
- Compatible with most cover frame brands
- Optimal dimming performance & light stability
- MIN adjustment & automatic MAX detection
- Protection against overload & interference signals
- Silent dimming
- Soft-start system
- Shallow installation depth
- Suitable for two-way & intermediate switching
- Phase loop-through possible (dual L terminal)
- Supplied incl. adapter for Busch-Jaeger and JUNG
General information
- Article number: ECO-DIM.04
- LED dimmer type: Trailing Edge / Phase cut / R,C
- Load: 0–150 Watt LED
- Suitable for 230V halogen: max. 300W
- Operation: Push/turn
- Packaging: Individually packed
Compatible cover frame brands
- Kopp
- Berker by Hager
- Busch-Jaeger
- Gira
- JUNG
- Merten by Schneider
- Niko
- PEHA
Compatible lamps
- 230V LED lamps* (max. 150W)
- Incandescent lamps (max. 300W)
- 230V halogen lamps (max. 300W)
- Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 300W)
* Provided the lamps are compatible with a trailing-edge LED dimmer.
LED Dimmer 0–150W EcoDim Trailing Edge
ECO-DIM.04 – Adjustable MIN – Automatic MAX detection
EcoDim LED Dimmer – Trailing Edge (RC) 0–150W
The most commonly used dimmer for LED lighting. Designed for optimal dimming performance and light stability, featuring an adjustable MIN level and automatic MAX detection.
Manual: download
Key features
- 0–150W LED
- Trailing edge (RC)
- Compatible with most cover frame brands
- Optimal dimming performance & light stability
- MIN adjustment & automatic MAX detection
- Protection against overload & interference signals
- Silent dimming
- Soft-start system
- Shallow installation depth
- Suitable for two-way & intermediate switching
- Phase loop-through possible (dual L terminal)
- Supplied incl. adapter for Busch-Jaeger and JUNG
General information
- Article number: ECO-DIM.04
- LED dimmer type: Trailing Edge / Phase cut / R,C
- Load: 0–150 Watt LED
- Suitable for 230V halogen: max. 300W
- Operation: Push/turn
- Packaging: Individually packed
Compatible cover frame brands
- Kopp
- Berker by Hager
- Busch-Jaeger
- Gira
- JUNG
- Merten by Schneider
- Niko
- PEHA
Compatible lamps
- 230V LED lamps* (max. 150W)
- Incandescent lamps (max. 300W)
- 230V halogen lamps (max. 300W)
- Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 300W)
* Provided the lamps are compatible with a trailing-edge LED dimmer.
- Product number 85292
- Manufacturer product number 4355410
- Material Plastics
- Built-in depth 2.38
- Color Blue
- Dimensions (W) x (H) : 7.09 x 7.09 cm
