In-lite - Wall spot Ace Up - Down 12 volt LED

Colour: Rose Silver
We recommend ordering these matching products:
Complete your lamp:

ACE LENS DIFFUSE

With the separate ACE lenses, a different light image can be created for the ACE fixtures.

13.-

Shutter 1

With this shutter, you can easily regulate the light beam.

13.-

Splitter

With splitter, a light sensor can be connected to multiple transformers, so that the entire lighting plan will switch on at the same time.

10.50

CBL-EXT CORD 1

Simply order this 1 meter extension cable if you need to extend an In-lite fixture.

13.-

209.- (+ accessoires)

In stock: Shipped on Monday

Advantages:

30 days return period
Buy now, pay later, for free
Trusted Shops score: 4.65 / 5
Average rating: 4.86, based on 2255
Description

In-lite Ace Up - Down Grey Wall Spot for 12 Volt Garden Lighting

The In-lite Ace Up - Down is an aluminum wall lamp in Rose Silver (grey) designed specifically for the 12 volt garden lighting system by In-lite. This system operates on low voltage, making it safe and easy to install yourself. With a transformer and 12 volt cable, you create a reliable lighting network in your garden. The advantage of 12 volt garden lighting is its energy efficiency and the ability to easily combine multiple fixtures without significant voltage loss.

Design and Lighting Technology of the Ace Up - Down

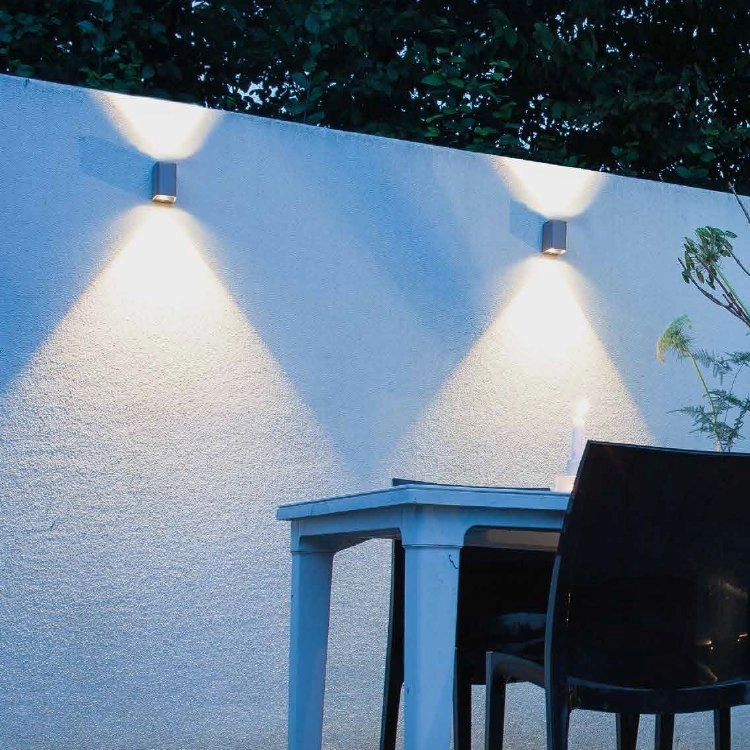

This spot measures 64 cm wide, 12 cm high, and 9.5 cm deep. The light source consists of two integrated 3.5 watt LED panels, each providing 10 lumens with a warm light color of 3000K. The light beam has a 66-degree angle and a range of about 4 meters. The deeply recessed LEDs prevent glare, allowing you to subtly illuminate parts of fences or borders. The light direction is both upward and downward, creating a beautiful lighting effect along walls or fences.

Features and Installation

The Ace Up - Down has an IP67 rating, meaning it is completely dustproof and waterproof, suitable for outdoor use in all weather conditions. The fixture comes with the LED panels included but without a transformer. For proper operation, connect it to the In-lite HUB-50 or HUB-100, depending on the total power of your garden lighting. The lamp is not dimmable and runs on 12 volts, matching the In-lite system that uses special low voltage cables with a maximum distance of 40 meters to the transformer.

  • Material: aluminum
  • Color: Rose Silver (grey)
  • Dimensions: 64 x 12 x 9.5 cm (w x h x d)
  • Light source: 2 x LED panel, 3.5W, 10 lumen, 3000K, warm white
  • IP rating: IP67
  • Light direction: up & down
  • Voltage: 12 volt
  • Dimmable: no
  • Series: Ace
  • Warranty: 5 years

  • Specifications
    • Product number 46103
    • Manufacturer product number 10301900
    • Light source Inclusive 2 x 3.5W Led-panel
      2x 10 lumen, 3000K, Warm white
    • Type of light LED
    • Dimmable No
    • Material Aluminium
    • Window Poly-carbonate
    • IP value 67
    • Angle/degree of light ray 66
    • Line cord 1
    • Voltage 12 volt
    • Transformer not included Yes
    • Type of spot Mounted
    • Light direction Up and down
    • Reach 4
    • Warranty 5
    • Color Grey
    • Dimensions (W) x (H) x (D) : 64 x 12 x 95 cm

    • In-lite Ace Up - Down Grey Wall Spot for 12 Volt Garden Lighting

    The In-lite Ace Up - Down is an aluminum wall lamp in Rose Silver (grey) designed specifically for the 12 volt garden lighting system by In-lite. This system operates on low voltage, making it safe and easy to install yourself. With a transformer and 12 volt cable, you create a reliable lighting network in your garden. The advantage of 12 volt garden lighting is its energy efficiency and the ability to easily combine multiple fixtures without significant voltage loss.

    Design and Lighting Technology of the Ace Up - Down

    This spot measures 64 cm wide, 12 cm high, and 9.5 cm deep. The light source consists of two integrated 3.5 watt LED panels, each providing 10 lumens with a warm light color of 3000K. The light beam has a 66-degree angle and a range of about 4 meters. The deeply recessed LEDs prevent glare, allowing you to subtly illuminate parts of fences or borders. The light direction is both upward and downward, creating a beautiful lighting effect along walls or fences.

    Features and Installation

    The Ace Up - Down has an IP67 rating, meaning it is completely dustproof and waterproof, suitable for outdoor use in all weather conditions. The fixture comes with the LED panels included but without a transformer. For proper operation, connect it to the In-lite HUB-50 or HUB-100, depending on the total power of your garden lighting. The lamp is not dimmable and runs on 12 volts, matching the In-lite system that uses special low voltage cables with a maximum distance of 40 meters to the transformer.

    • Material: aluminum
    • Color: Rose Silver (grey)
    • Dimensions: 64 x 12 x 9.5 cm (w x h x d)
    • Light source: 2 x LED panel, 3.5W, 10 lumen, 3000K, warm white
    • IP rating: IP67
    • Light direction: up & down
    • Voltage: 12 volt
    • Dimmable: no
    • Series: Ace
    • Warranty: 5 years

    In-lite Ace Up - Down Grey Wall Spot for 12 Volt Garden Lighting

    The In-lite Ace Up - Down is an aluminum wall lamp in Rose Silver (grey) designed specifically for the 12 volt garden lighting system by In-lite. This system operates on low voltage, making it safe and easy to install yourself. With a transformer and 12 volt cable, you create a reliable lighting network in your garden. The advantage of 12 volt garden lighting is its energy efficiency and the ability to easily combine multiple fixtures without significant voltage loss.

    Design and Lighting Technology of the Ace Up - Down

    This spot measures 64 cm wide, 12 cm high, and 9.5 cm deep. The light source consists of two integrated 3.5 watt LED panels, each providing 10 lumens with a warm light color of 3000K. The light beam has a 66-degree angle and a range of about 4 meters. The deeply recessed LEDs prevent glare, allowing you to subtly illuminate parts of fences or borders. The light direction is both upward and downward, creating a beautiful lighting effect along walls or fences.

    Features and Installation

    The Ace Up - Down has an IP67 rating, meaning it is completely dustproof and waterproof, suitable for outdoor use in all weather conditions. The fixture comes with the LED panels included but without a transformer. For proper operation, connect it to the In-lite HUB-50 or HUB-100, depending on the total power of your garden lighting. The lamp is not dimmable and runs on 12 volts, matching the In-lite system that uses special low voltage cables with a maximum distance of 40 meters to the transformer.

    • Material: aluminum
    • Color: Rose Silver (grey)
    • Dimensions: 64 x 12 x 9.5 cm (w x h x d)
    • Light source: 2 x LED panel, 3.5W, 10 lumen, 3000K, warm white
    • IP rating: IP67
    • Light direction: up & down
    • Voltage: 12 volt
    • Dimmable: no
    • Series: Ace
    • Warranty: 5 years

    • Product number 46103
    • Manufacturer product number 10301900
    • Light source Inclusive 2 x 3.5W Led-panel
      2x 10 lumen, 3000K, Warm white
    • Type of light LED
    • Dimmable No
    • Material Aluminium
    • Window Poly-carbonate
    • IP value 67
    • Angle/degree of light ray 66
    • Line cord 1
    • Voltage 12 volt
    • Transformer not included Yes
    • Type of spot Mounted
    • Light direction Up and down
    • Reach 4
    • Warranty 5
    • Color Grey
    • Dimensions (W) x (H) x (D) : 64 x 12 x 95 cm
