In-lite - Wall or Garden Spotlight Mini Scope 12 volt LED
SHIELD 1
13.-
99.- (+ accessoires)
In stock: shipped today
Advantages:
Description

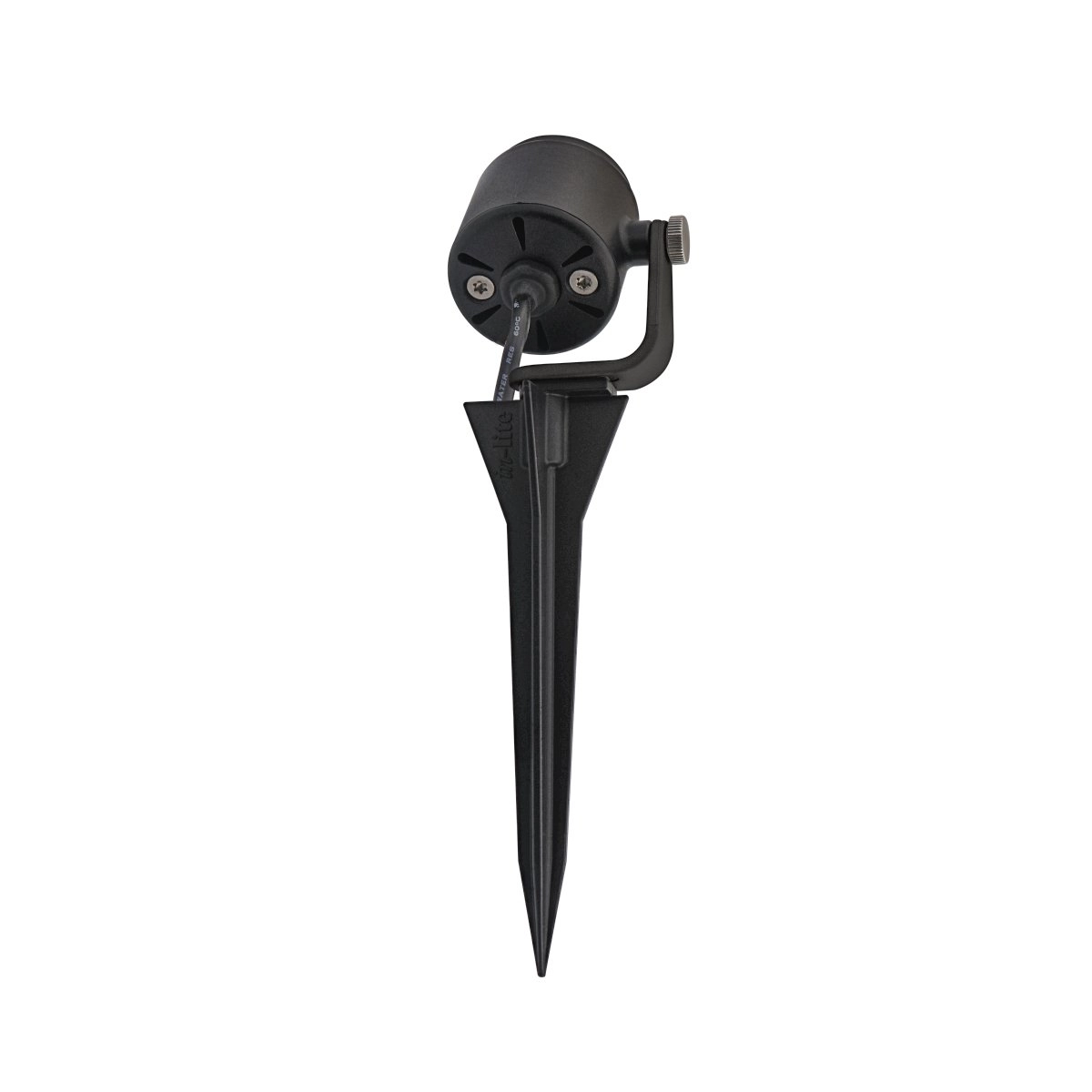

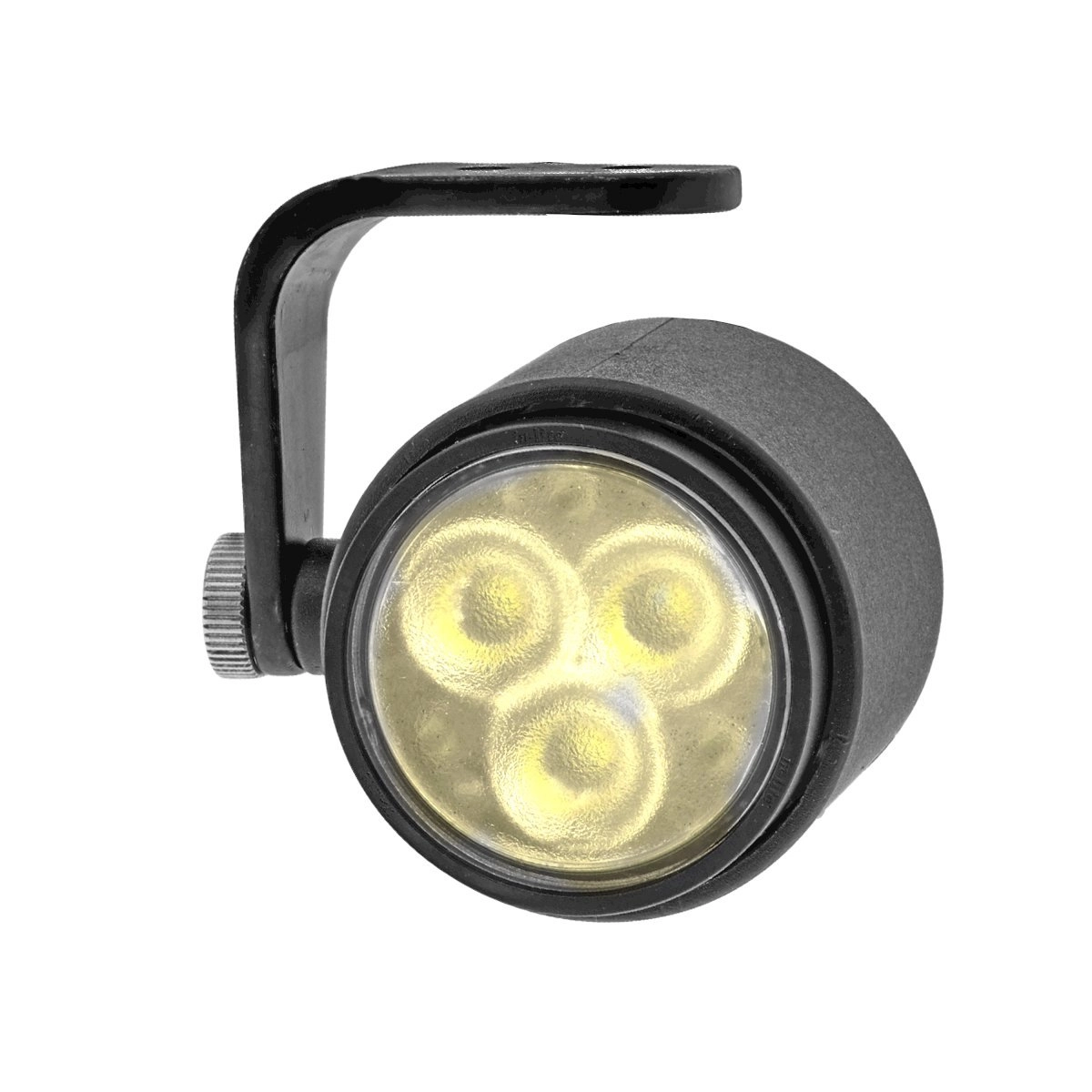

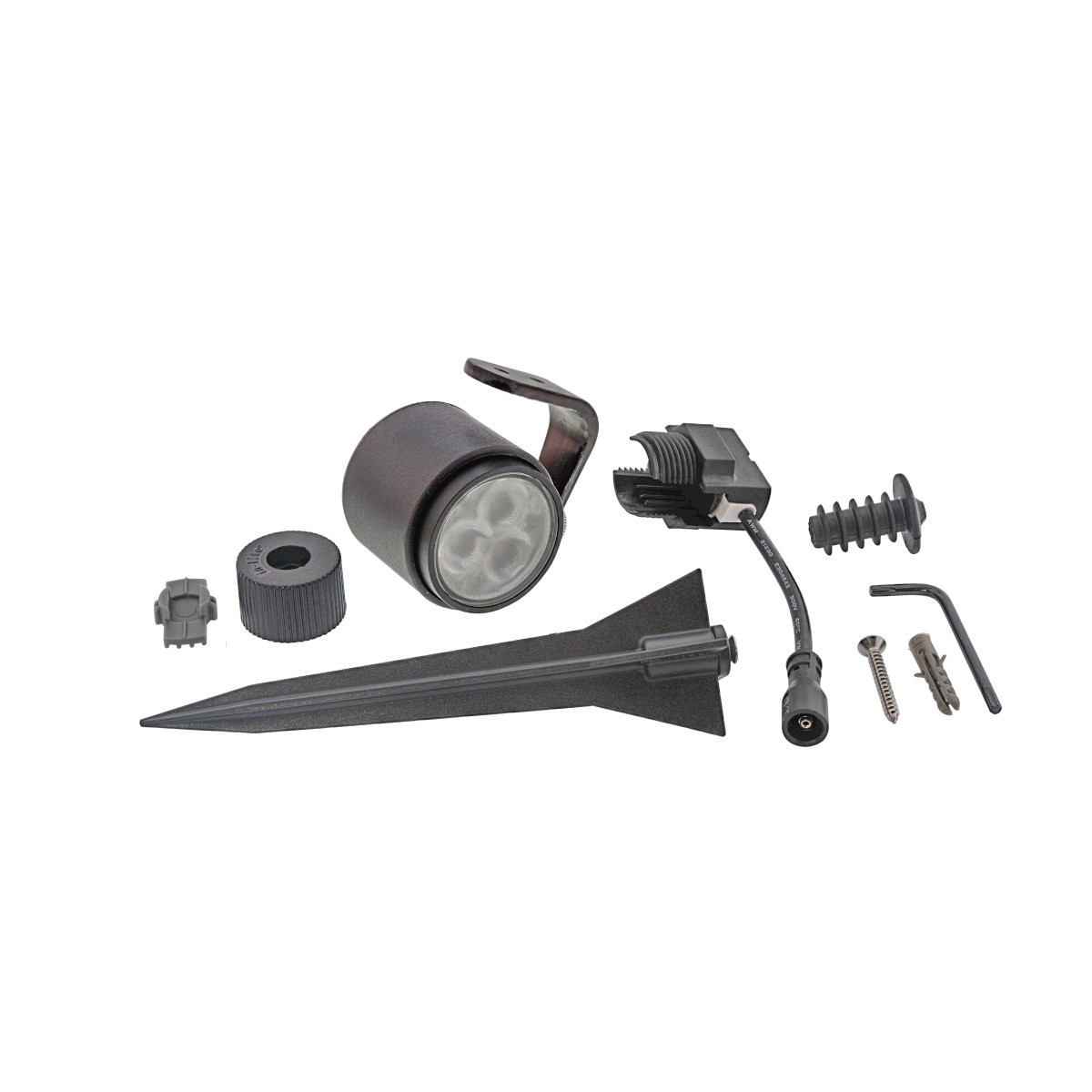

Mini Scope from In-lite, the Mini Scope is a long-awaited LED garden spot from In-lite. Due to the beautiful design of this LED spot, it is even a jewel in your garden during the day. The beautiful subtly designed spot has an included ground spike for mounting in the open ground of your garden or border. But a handy design bracket is also included for mounting on harder surfaces. This makes the In-lite Mini Scope very easy to mount on the wall, but also on the fence or pergola. Due to its small size, it is very widely applicable in your garden, the diameter of the LED lens is only 4.7 cm and has a power of 2 watts and yet a light range of 2 meters. The unique LED gives a beautiful warm light shine in your garden. In-lite Mini Scope is a long-awaited addition to the In-lite 12 volt range. For clarity, you can see the brief explanation of the system below.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
Â
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
Specifications
- Product number 39563
- Manufacturer product number 10400601
-
Light source
Inclusive
1 x 2W
Led-panel
1x 64 lumen, 3000K, Warm white - Type of light LED
- Dimmable No
- Material Aluminium
- Window Poly-carbonate
- IP value 67
- Angle/degree of light ray 40
- Line cord 1
- Voltage 12 volt
- Transformer not included Yes
- VA 2
- Type of spot Mounted
- Spike Delivered loose
- Reach 3
- Warranty 5
- Color Black

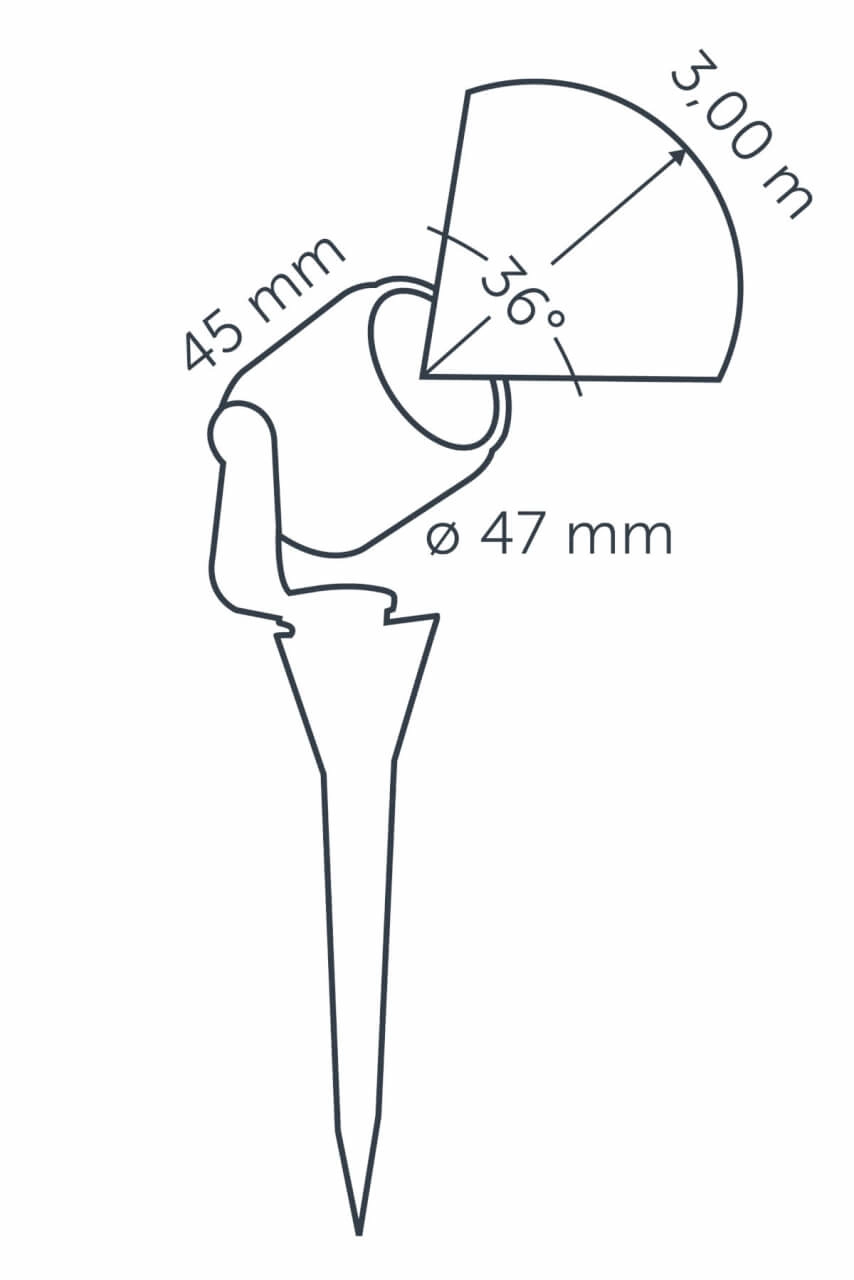

- Dimensions (Ø) : 4.7 cm
Mini Scope from In-lite, the Mini Scope is a long-awaited LED garden spot from In-lite. Due to the beautiful design of this LED spot, it is even a jewel in your garden during the day. The beautiful subtly designed spot has an included ground spike for mounting in the open ground of your garden or border. But a handy design bracket is also included for mounting on harder surfaces. This makes the In-lite Mini Scope very easy to mount on the wall, but also on the fence or pergola. Due to its small size, it is very widely applicable in your garden, the diameter of the LED lens is only 4.7 cm and has a power of 2 watts and yet a light range of 2 meters. The unique LED gives a beautiful warm light shine in your garden. In-lite Mini Scope is a long-awaited addition to the In-lite 12 volt range. For clarity, you can see the brief explanation of the system below.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
Â
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
Â
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
- Product number 39563
- Manufacturer product number 10400601
-
Light source
Inclusive
1 x 2W
Led-panel
1x 64 lumen, 3000K, Warm white - Type of light LED
- Dimmable No
- Material Aluminium
- Window Poly-carbonate
- IP value 67
- Angle/degree of light ray 40
- Line cord 1
- Voltage 12 volt
- Transformer not included Yes
- VA 2
- Type of spot Mounted
- Spike Delivered loose
- Reach 3
- Warranty 5
- Color Black
- Dimensions (Ø) : 4.7 cm
