In-lite - Small recessed spot DB-LED (WW) 12 volt LED
Colour: Transparent
Splitter
10.50
CBL-EXT CORD 1
11.-
CBL-EXT CORD 2
16.-
51.- (+ accessoires)
In stock: shipped today
Advantages:
Description

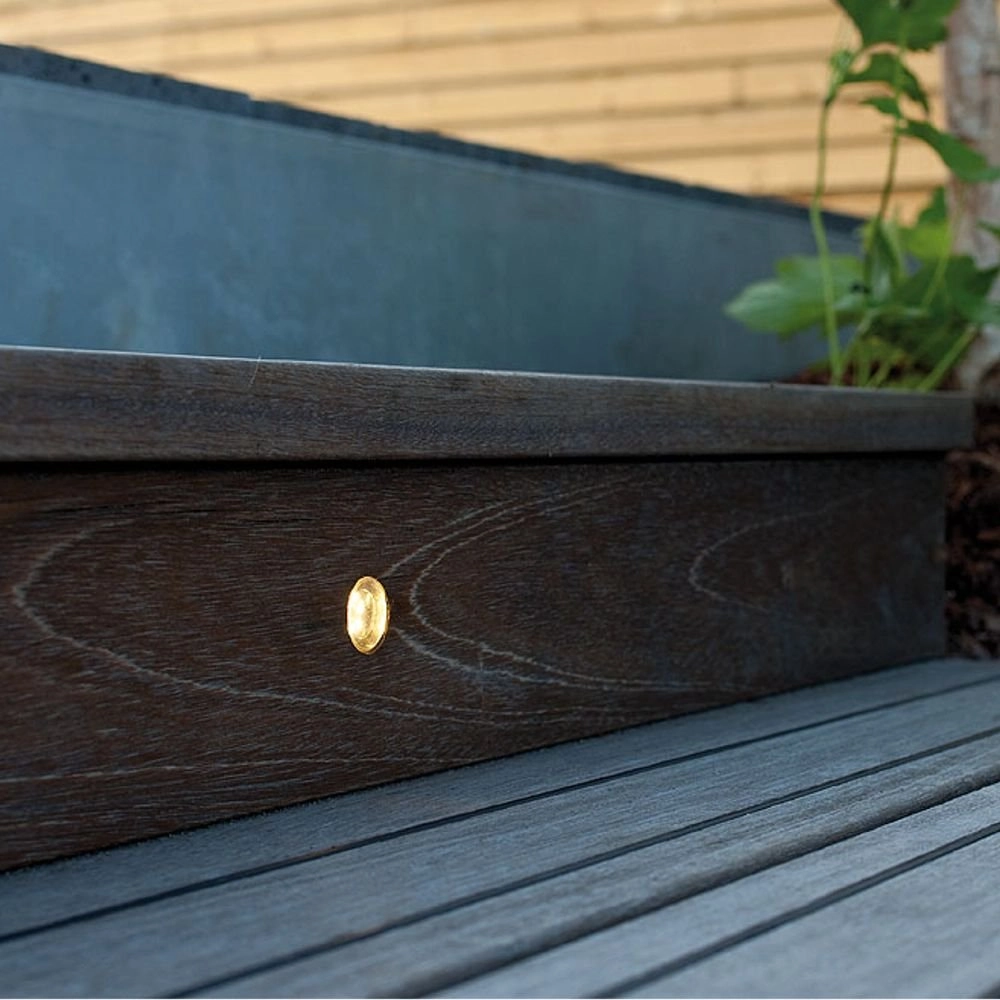

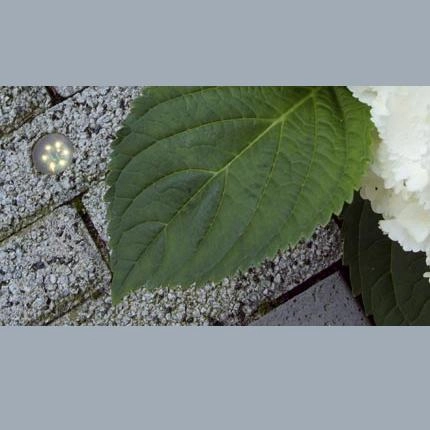

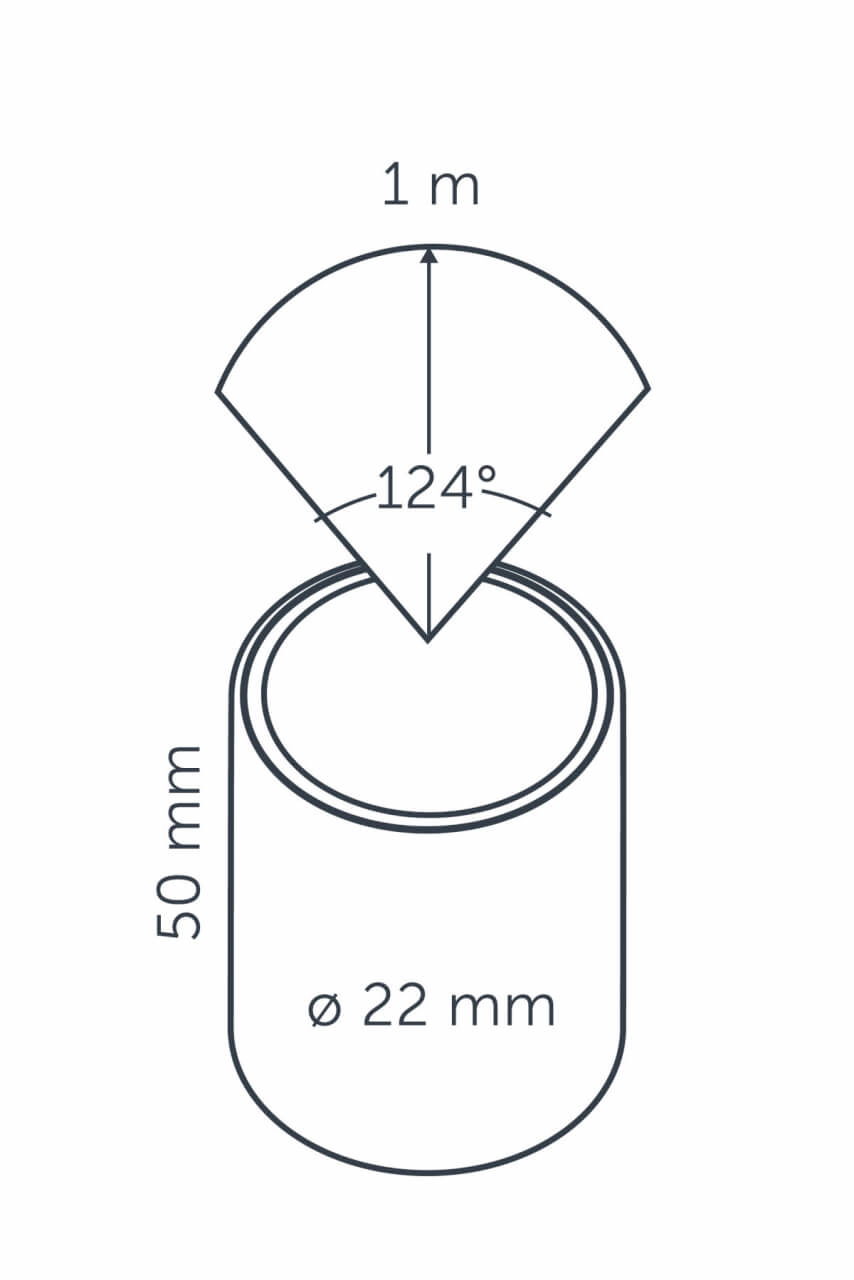

Inlite DB-LED WW is a garden led spot with a warm white light color. The In-lite DB LED fixture is extremely subtle, small but fine. The bright spot of this LED spotlight is also visible during the day and gives a beautiful light in the evening, for example in staircases and terraces. This DB-LED is delivered without transformer and cord, this must be ordered separately. See inlite transformer and inlite cable for further information. Brand in-lite integrated. The bright spot for every garden, terrace or place. Gives a striking accent of 'warm white' LED light, which is also visible during the day. The luminaire (22mm) made of impact-resistant polycarbonate has a mounting height of 37mm and is subtle but present and easy to process in wood, concrete and various types of natural stone. Combines perfectly with all other fixtures from Solitair, Wall or Spot, and in particular forms a unit with AMLS-11A LED. With a power of 0.5W you enjoy a very low energy consumption. The DB-Led by Inlite has a light angle of 84 degrees and a range of around 1 meter. The LED spot is made of impact-resistant polycarbonate filled with a 2-component resin, 100,000 burning hours, 100% waterproof (IP-68). Inlite 1200509 DB-Led in warm white color can be used in concrete, natural stone, wood, lawn and is even cruiser. For the sake of clarity, the brief explanation of the system is given below. This fixture belongs to the In-lite 12 volt system: In-lite outdoor lighting is based on low voltage (12 volts). Inlite lighting is therefore safe and easy to install yourself. You only need a transformer and 12 volt cable from Inlite. The transformer controls the lighting and gives power to the system. With the aid of the Inlite light sensor, the lighting automatically switches on when it gets dark and with the timer you can set the number of burning hours. The low-voltage cable conducts the current and ensures that the luminaires are lit. Always make sure that your Inlite transformer has sufficient power (watts) for the luminaires in your lighting plan. In addition, when selecting the 12-volt cable, consider the maximum distance you can travel with it.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
Â
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
Specifications
- Product number 15965
- Manufacturer product number 10102402
-
Light source
Inclusive
1 x 0.5W
Led-panel
3000K, Warm white - Type of light LED
- Dimmable No
- Material Plastics
- Window Poly-carbonate
- IP value 67
- Angle/degree of light ray 84
- Saw diameter 2
- Built-in depth 4
- Line cord 1
- Voltage 12 volt
- Transformer not included Yes
- VA 1
- Type of spot Built-in
- Reach 1
- Warranty 5
- Color Transparent
- Dimensions (Ø) : 22 cm
Inlite DB-LED WW is a garden led spot with a warm white light color. The In-lite DB LED fixture is extremely subtle, small but fine. The bright spot of this LED spotlight is also visible during the day and gives a beautiful light in the evening, for example in staircases and terraces. This DB-LED is delivered without transformer and cord, this must be ordered separately. See inlite transformer and inlite cable for further information. Brand in-lite integrated. The bright spot for every garden, terrace or place. Gives a striking accent of 'warm white' LED light, which is also visible during the day. The luminaire (22mm) made of impact-resistant polycarbonate has a mounting height of 37mm and is subtle but present and easy to process in wood, concrete and various types of natural stone. Combines perfectly with all other fixtures from Solitair, Wall or Spot, and in particular forms a unit with AMLS-11A LED. With a power of 0.5W you enjoy a very low energy consumption. The DB-Led by Inlite has a light angle of 84 degrees and a range of around 1 meter. The LED spot is made of impact-resistant polycarbonate filled with a 2-component resin, 100,000 burning hours, 100% waterproof (IP-68). Inlite 1200509 DB-Led in warm white color can be used in concrete, natural stone, wood, lawn and is even cruiser. For the sake of clarity, the brief explanation of the system is given below. This fixture belongs to the In-lite 12 volt system: In-lite outdoor lighting is based on low voltage (12 volts). Inlite lighting is therefore safe and easy to install yourself. You only need a transformer and 12 volt cable from Inlite. The transformer controls the lighting and gives power to the system. With the aid of the Inlite light sensor, the lighting automatically switches on when it gets dark and with the timer you can set the number of burning hours. The low-voltage cable conducts the current and ensures that the luminaires are lit. Always make sure that your Inlite transformer has sufficient power (watts) for the luminaires in your lighting plan. In addition, when selecting the 12-volt cable, consider the maximum distance you can travel with it.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
Â
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
Â
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
- Product number 15965
- Manufacturer product number 10102402
-
Light source
Inclusive
1 x 0.5W
Led-panel
3000K, Warm white - Type of light LED
- Dimmable No
- Material Plastics
- Window Poly-carbonate
- IP value 67
- Angle/degree of light ray 84
- Saw diameter 2
- Built-in depth 4
- Line cord 1
- Voltage 12 volt
- Transformer not included Yes
- VA 1
- Type of spot Built-in
- Reach 1
- Warranty 5
- Color Transparent
- Dimensions (Ø) : 22 cm
