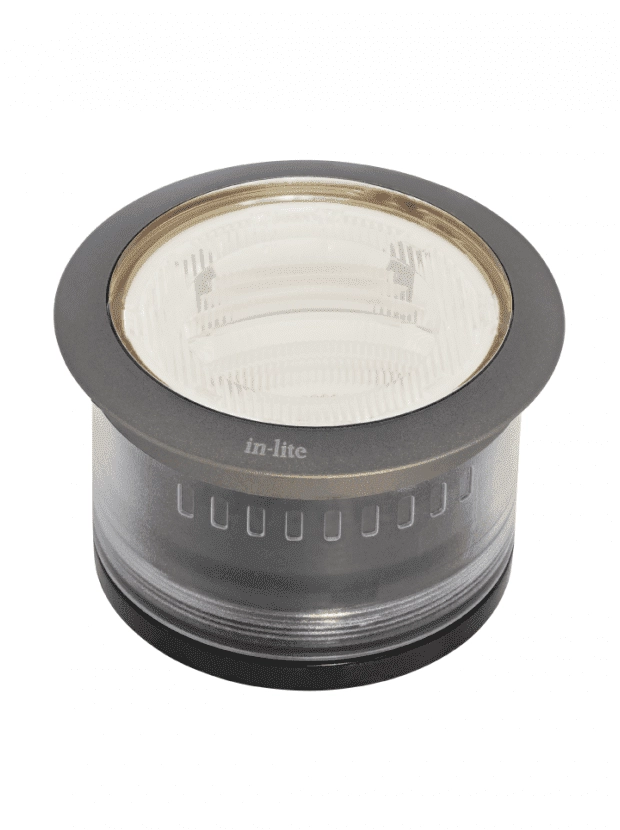

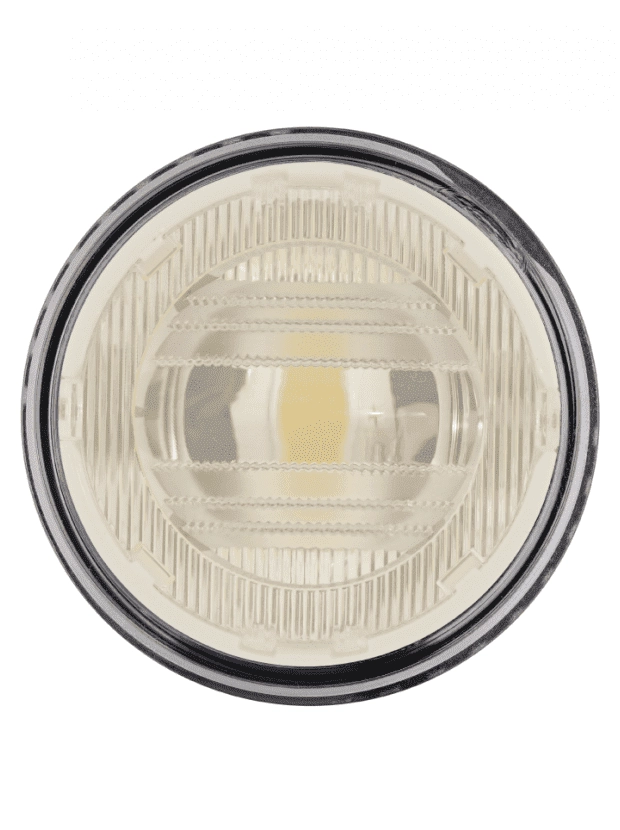

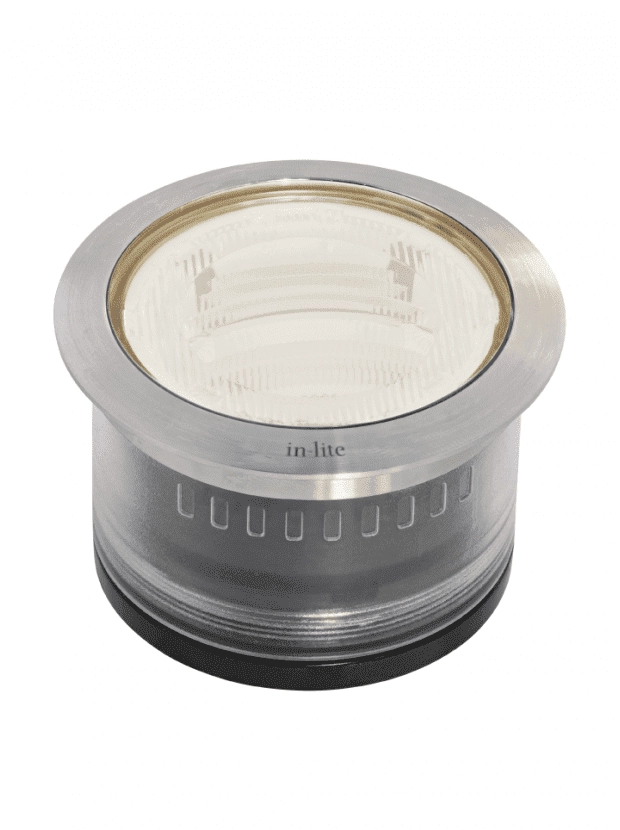

In-lite - Recessed spot Big Flux Asymmetric 12 volt LED
CBL-EXT CORD 1
11.-
Splitter
10.50
139.- (+ accessoires)
In stock: shipped today
Advantages:
Description

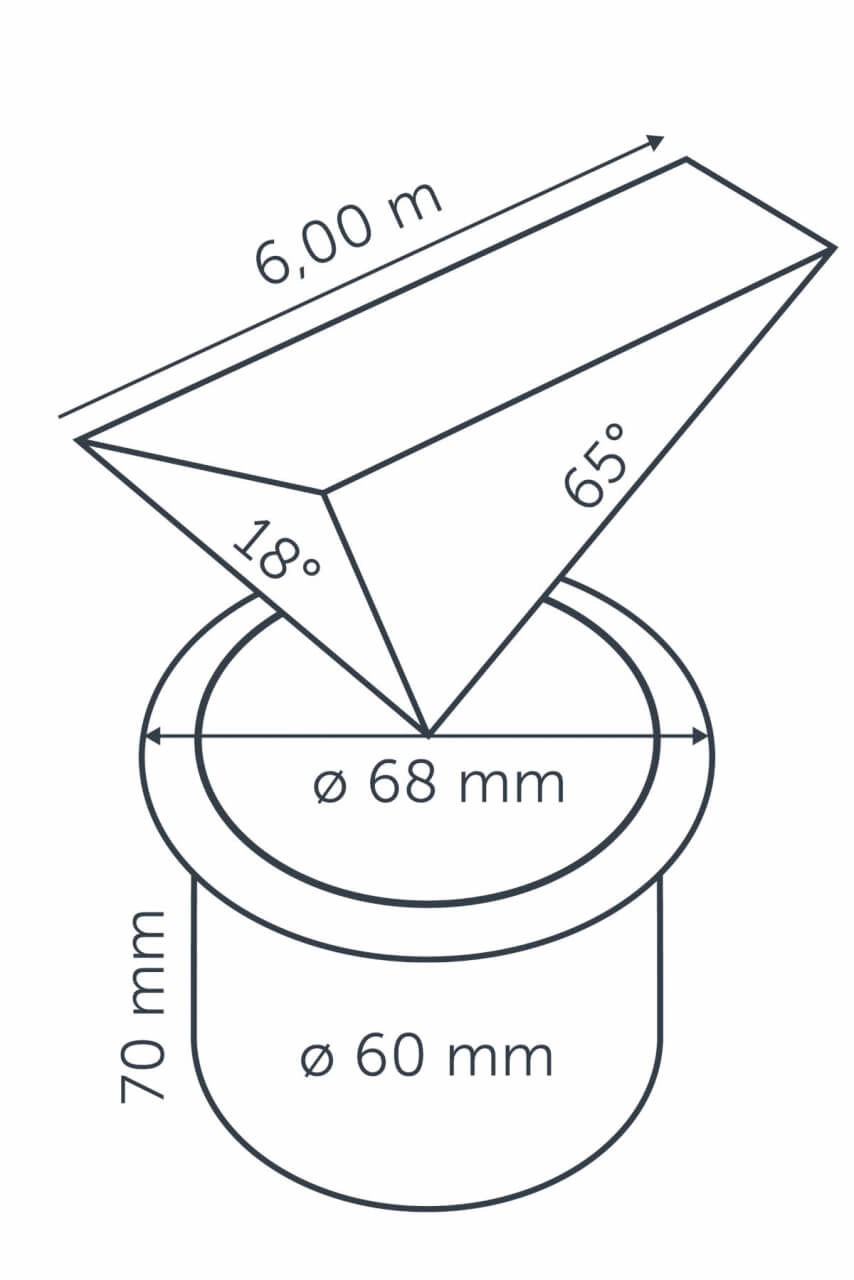

Big Flux Asymmetric from In-lite, the ground spotlight in LED version of In-lite is an integrated accent lighting for illuminating special places in the garden such as trees, shrubs, statues and facades. The light beam gives a beautiful warm glow which is made possible is thanks to the smart In-lite LED system Because the ring rests on the surface, the LED spot is also easy to use in, for example, wood. The addition 'Asymmetric' makes this Big Flux very special. Asymmetric means that the light beam is not symmetrical. This allows the spot to be used for different applications. If you use one direction, you have a beam of 65 degrees. If you rotate the spot 90 degrees, the light beam changes to a narrow beam of light of 18 degrees. With a light beam of 18 degrees, you illuminate beams of a pergola, wide niches or passageways in an attractive way. In both cases, the light range is 6 meters. For this article we recommend the Inlite Spike if you want to place the spot in the ground. Thanks to the Spike, the spot stays in place and is also easier to move. Note: the In-lite Big Flux Asymmetric wordt standaard geleverd zonder ring. Dit stelt u in staat om de Big Flux Asymmetric volledig naar wens af te werken. In-lite heeft namelijk de ring in 3 verschillende kleuren gemaakt. Een RVS ring, een grijze ring en een zwarte ring zorgen ervoor dat uzelf de afwerking bepaalt. Daarnaast is deze Big Flux Asymmetric niet geschikt om in een Box-100 verwerkt te worden.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
Specifications
- Product number 80311
- Manufacturer product number 10103240
-
Light source
Inclusive
1 x 3W
Led-panel
1x 258 lumen, 3100K, Warm white - Type of light LED
- Dimmable No
- Material Plastics
- Window Poly-carbonate
- IP value 67
- Saw diameter 6
- Built-in depth 7
- Voltage 12 volt
- VA 4
- Type of spot Built-in
- Reach 6
- Warranty 5
- Color Transparent
- Dimensions (H) x (Ø) : 6.4 x 6 cm
Big Flux Asymmetric from In-lite, the ground spotlight in LED version of In-lite is an integrated accent lighting for illuminating special places in the garden such as trees, shrubs, statues and facades. The light beam gives a beautiful warm glow which is made possible is thanks to the smart In-lite LED system Because the ring rests on the surface, the LED spot is also easy to use in, for example, wood. The addition 'Asymmetric' makes this Big Flux very special. Asymmetric means that the light beam is not symmetrical. This allows the spot to be used for different applications. If you use one direction, you have a beam of 65 degrees. If you rotate the spot 90 degrees, the light beam changes to a narrow beam of light of 18 degrees. With a light beam of 18 degrees, you illuminate beams of a pergola, wide niches or passageways in an attractive way. In both cases, the light range is 6 meters. For this article we recommend the Inlite Spike if you want to place the spot in the ground. Thanks to the Spike, the spot stays in place and is also easier to move. Note: the In-lite Big Flux Asymmetric wordt standaard geleverd zonder ring. Dit stelt u in staat om de Big Flux Asymmetric volledig naar wens af te werken. In-lite heeft namelijk de ring in 3 verschillende kleuren gemaakt. Een RVS ring, een grijze ring en een zwarte ring zorgen ervoor dat uzelf de afwerking bepaalt. Daarnaast is deze Big Flux Asymmetric niet geschikt om in een Box-100 verwerkt te worden.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
- Product number 80311
- Manufacturer product number 10103240
-
Light source
Inclusive
1 x 3W
Led-panel
1x 258 lumen, 3100K, Warm white - Type of light LED
- Dimmable No
- Material Plastics
- Window Poly-carbonate
- IP value 67
- Saw diameter 6
- Built-in depth 7
- Voltage 12 volt
- VA 4
- Type of spot Built-in
- Reach 6
- Warranty 5
- Color Transparent
- Dimensions (H) x (Ø) : 6.4 x 6 cm
