Description

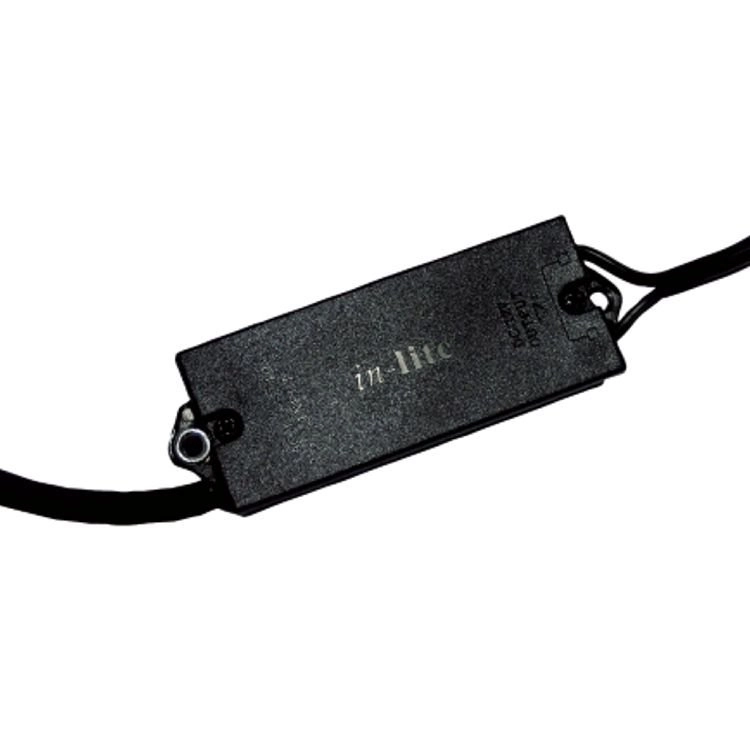

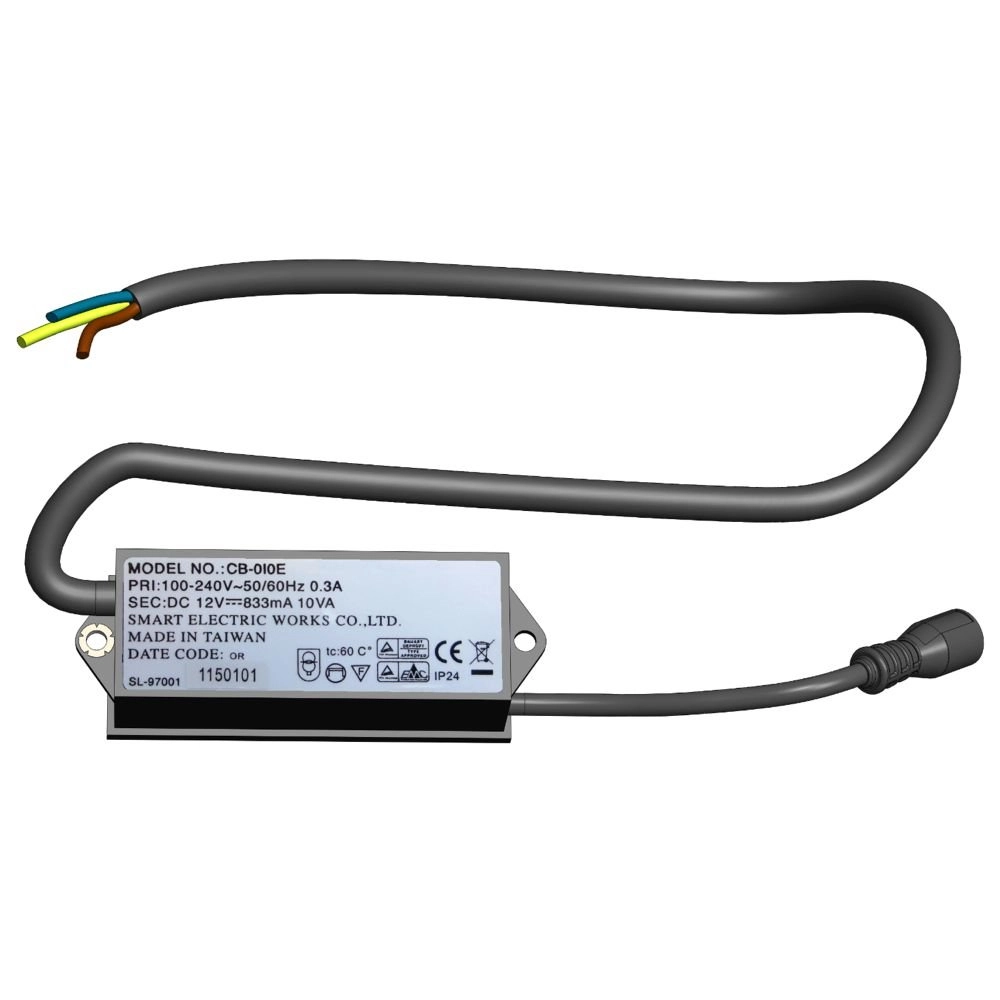

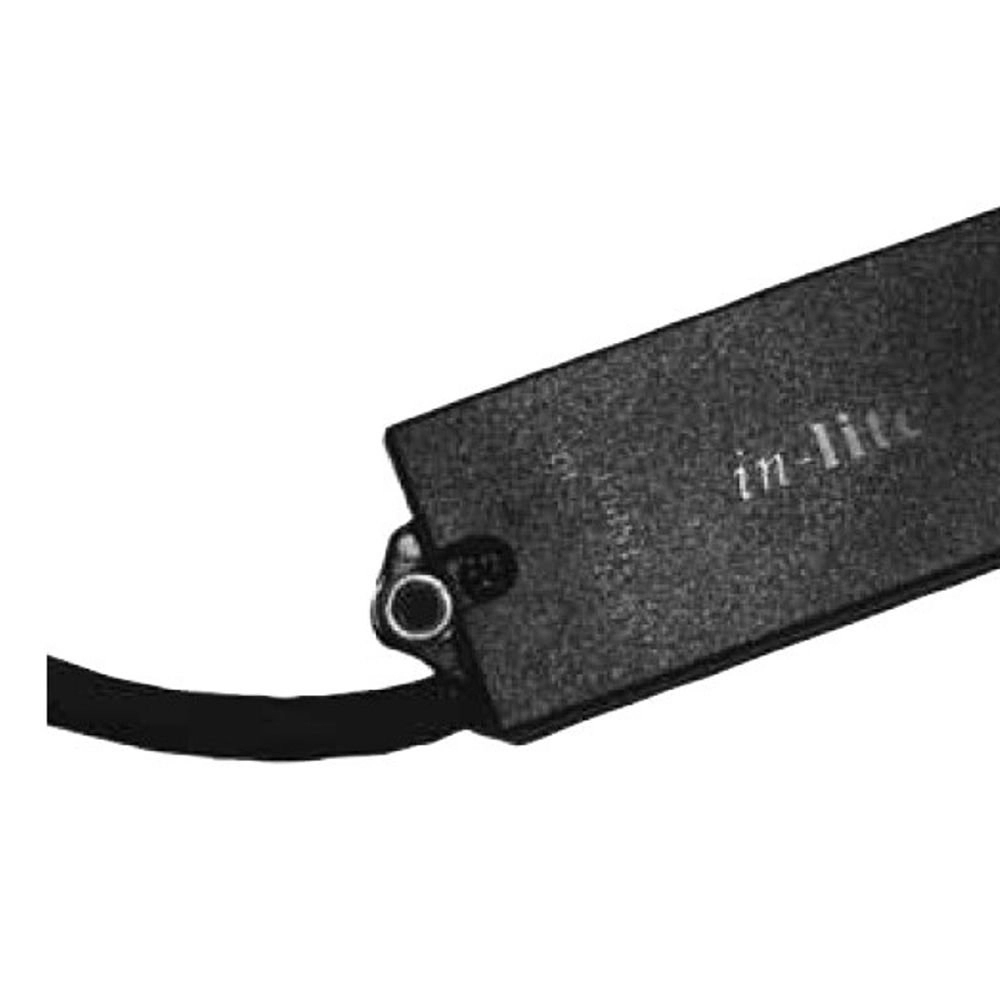

The In-lite mini transformer CB-010E is designed to power the next inlite lamps with 230 volts. Most In-lite fixtures are made for 12 volts but do not want a set or do not allow the conditions in and around your garden to connect the In-lite fixture to 12 volts, then this mini transformer CB-010E from In -lite very handy. This mini transformer is placed between the lamp and the 230 volt network, this way you can still enjoy unlimitedly a 12 volt inlite lamp which is connected to the 230 volt network. Please note that this mini transformer can only be used with In-lite luminaires where this is explicitly stated, for example: Curv, Liv Wall, Fish Eye Wall and Sentina Wall. By installing this transformer in a 12 volt in-lite lamp you can connect 230 volts to the end. Brand in-lite accessories, type CB-005E mini transformer 5W. Inlite 1000020

How does the In-lite 12 volt system work?

The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).

After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.

To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.

Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
