In-lite - Adjustable recessed spot Luna 12 volts
Splitter
10.50
124.- (+ accessoires)
In stock: shipped today
Advantages:
Description

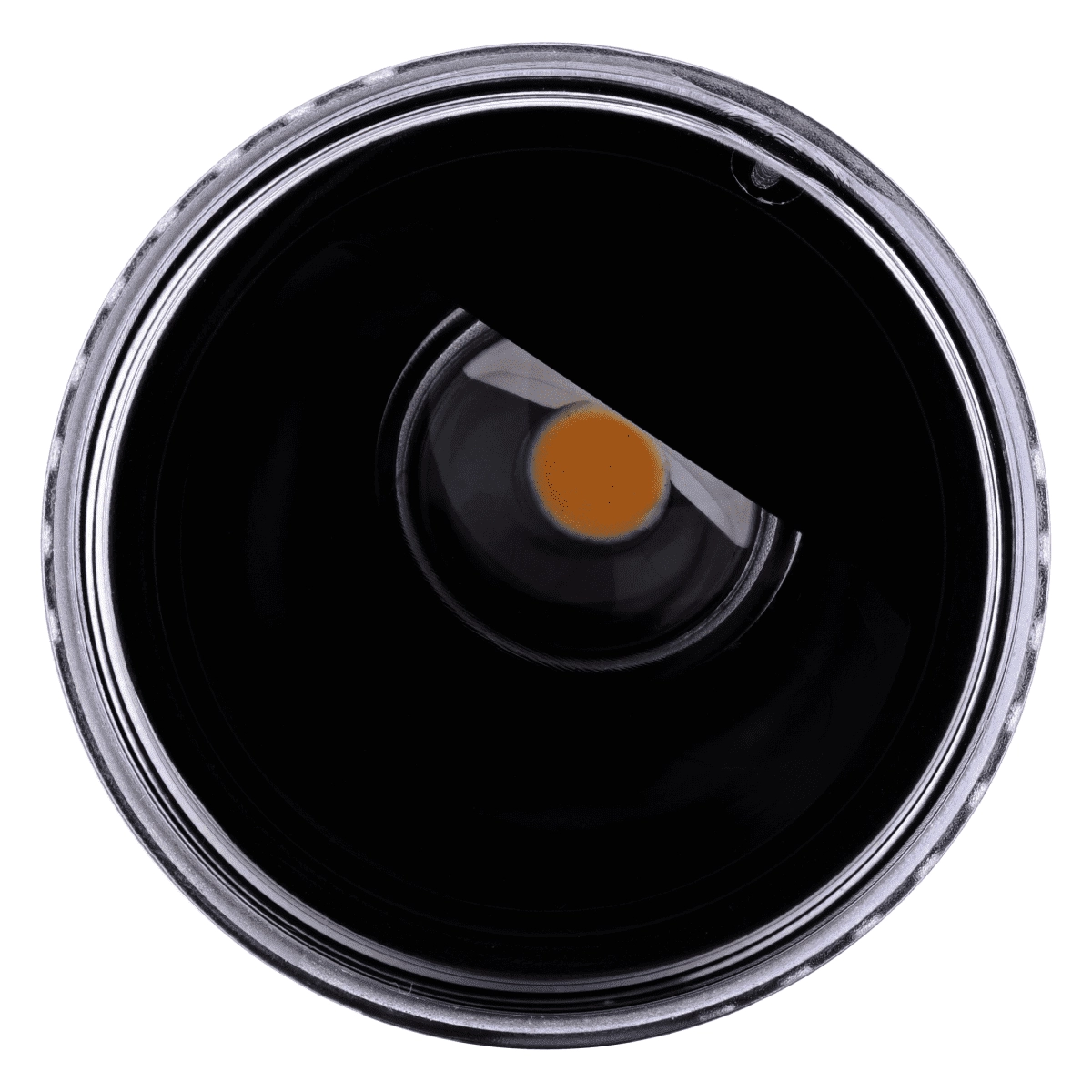

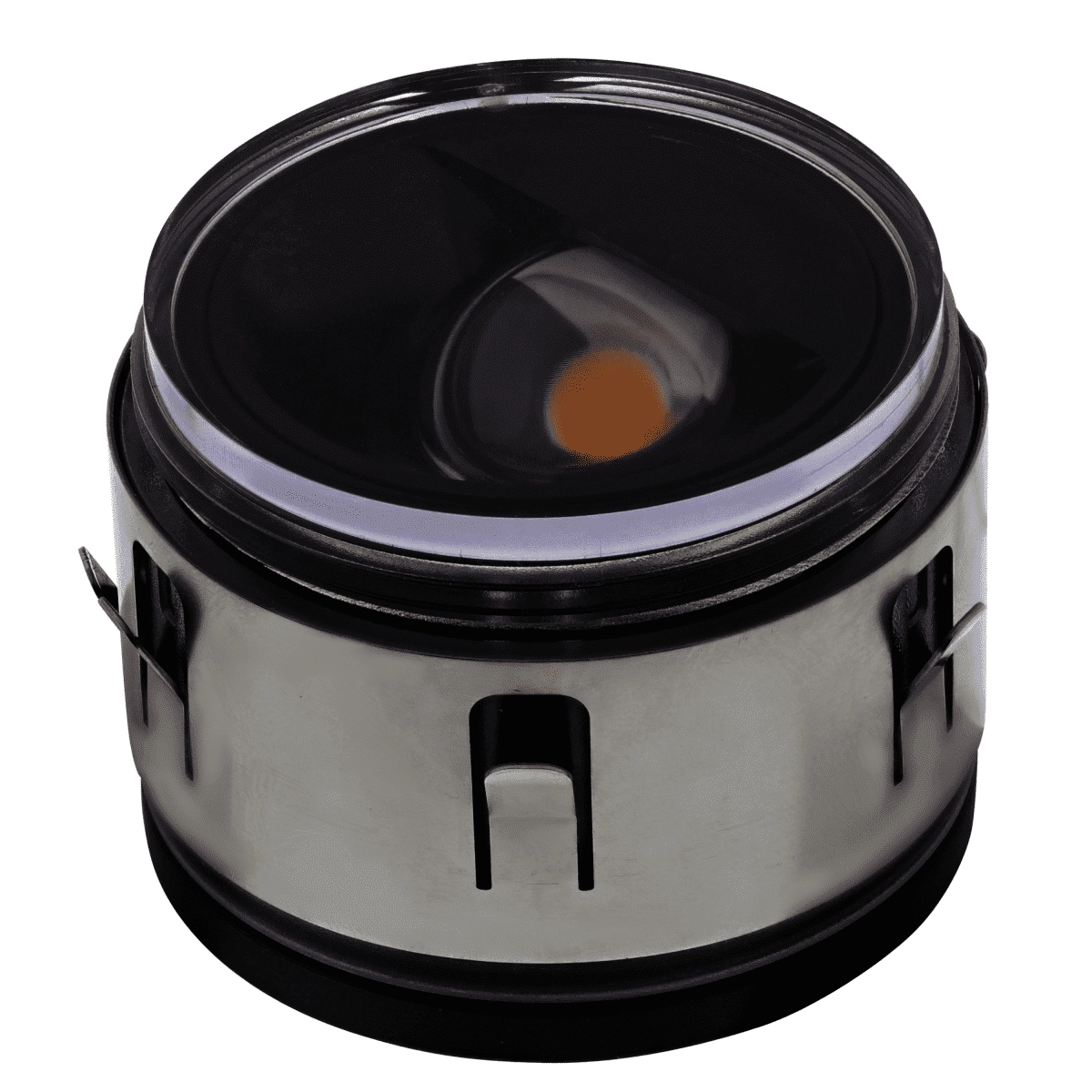

With the Luna, the possibilities for lighting your garden become endless. The light source in the Luna is placed in the spot at an oblique angle. As a result, the light source creates a light beam of 85 degrees and shines up to 3 meters away. The other side of the spot is covered with a diffuser so that passers-by do not look into the light source. Please note: the In-lite Luna comes standard without a ring. This allows you to finish the Luna completely to your liking. In-lite has made the ring in 3 different colors which are also in our webshop.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
Specifications
- Product number 73990
- Manufacturer product number 10104180
-
Light source
Inclusive
1 x 3W
Led-panel
3000K, Warm white - Type of light LED
- Dimmable No
- Material Stainless steel
- Window Poly-carbonate
- IP value 67
- Saw diameter 6
- Built-in depth 7
- Line cord 1
- Voltage 12 volt
- VA 5
- Type of spot Built-in
- Reach 3
- Warranty 5
- Color Transparent

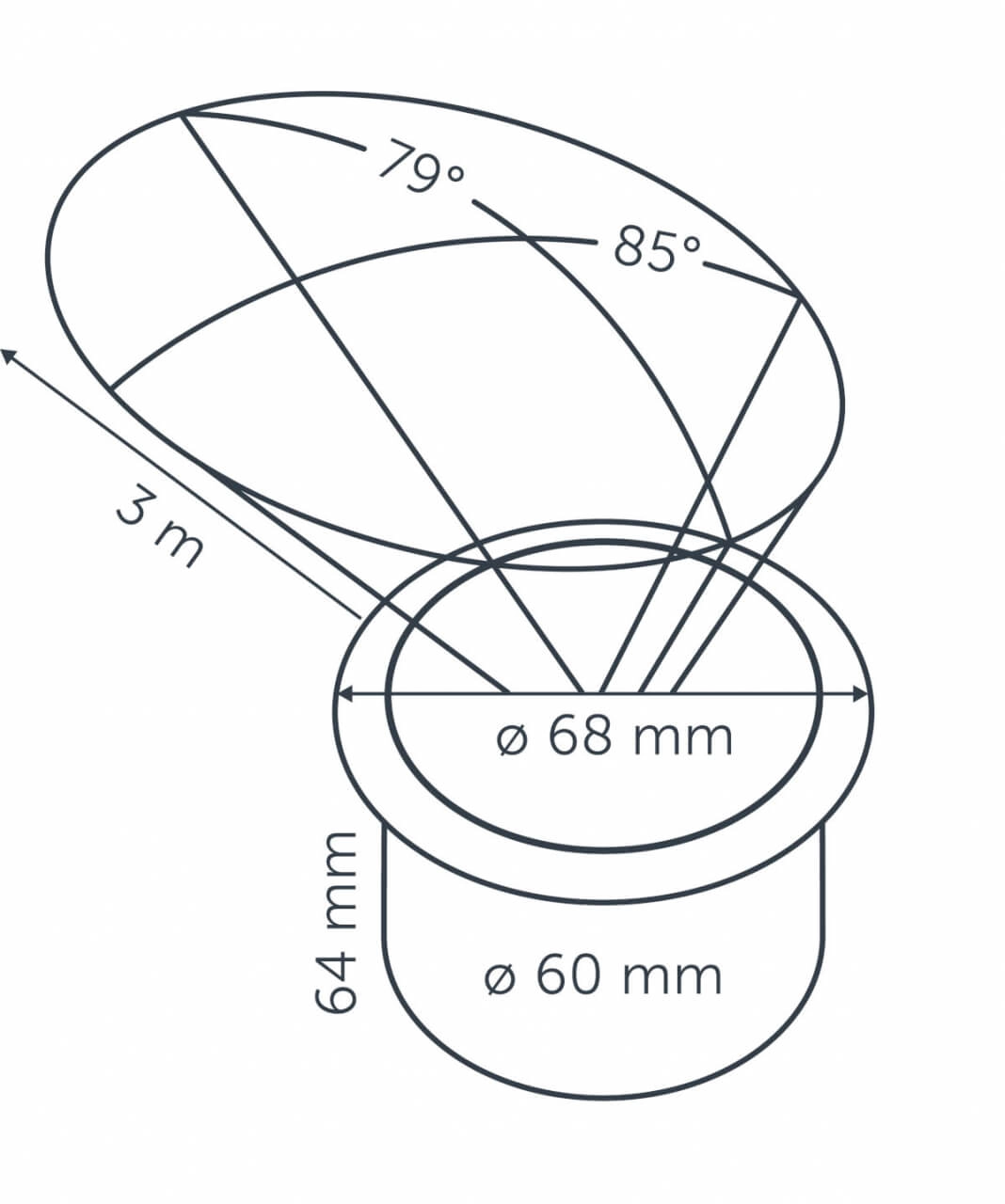

- Dimensions (H) x (Ø) : 6.4 x 6 cm
With the Luna, the possibilities for lighting your garden become endless. The light source in the Luna is placed in the spot at an oblique angle. As a result, the light source creates a light beam of 85 degrees and shines up to 3 meters away. The other side of the spot is covered with a diffuser so that passers-by do not look into the light source. Please note: the In-lite Luna comes standard without a ring. This allows you to finish the Luna completely to your liking. In-lite has made the ring in 3 different colors which are also in our webshop.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
How does the In-lite 12 volt system work?
The In-lite 12 volt system has been developed to easily illuminate your garden completely. You need various parts to operate In-lite lighting fixtures. If you know which fixtures you want and in what quantities, add all the wattages of the fixtures together. With In-lite this is expressed in VA (volt-ampere). For this article that is [VA]VA. Depending on the total power, you choose the HUB-50 (total power 50VA ) or the HUB-100 (total power 100VA).
After you know which transformer you need, see how many meters of cable you need. In-lite uses two types of cables: a 14/2 cable and a 10/2 cable. The 14/2 is the thinnest of the two and has a maximum linear length of 40 meters. This does not mean that the total number of meters of cables in your garden should not exceed 40, but that the furthest point of the cable should not be more than 40 meters from the transformer. For the 10/2 variant this is 80 meters. In-lite offers the cables in different lengths.
To use the In-lite system as efficiently as possible, you can expand the system with the motion sensor MOVE. There is an extra connection in the transformer for the motion sensor. This causes the entire system to turn on when the motion sensor detects movement. A 2 meter cable is supplied as standard with the MOVE. If this is too short, there is also a 5 meter extension cable which allows you to hang the MOVE further from the transformer. Please note, this is possible up to a maximum of 20 meters.
Once you have the cable in the garden, you can connect the lighting fixtures to it. Each fixture comes with an Easy-lock (connector from In-lite) that allows you to connect the lamp to the main cable. Of course, it may sometimes happen that you have to move in multiple directions in your garden. With the cable connector CC-2 you can easily make a branch at any desired location on the cable.
- Product number 73990
- Manufacturer product number 10104180
-
Light source
Inclusive
1 x 3W
Led-panel
3000K, Warm white - Type of light LED
- Dimmable No
- Material Stainless steel
- Window Poly-carbonate
- IP value 67
- Saw diameter 6
- Built-in depth 7
- Line cord 1
- Voltage 12 volt
- VA 5
- Type of spot Built-in
- Reach 3
- Warranty 5
- Color Transparent
- Dimensions (H) x (Ø) : 6.4 x 6 cm
